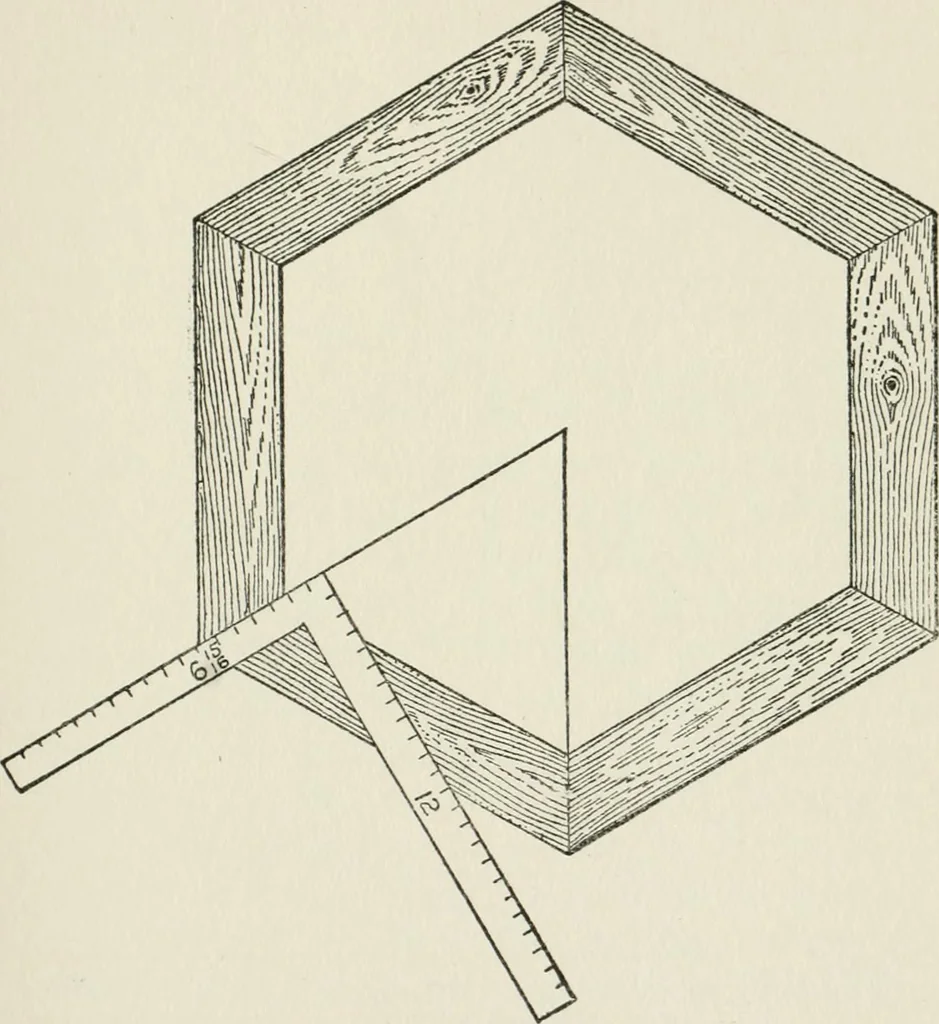

FIG. 161 PRACTICAL CARPENTRY li5 inches thick, the hnes A and B will be 4| inchesapart. The Jack Cut may be found as follows: Take5 on the tongue and the length of the common … FIG. 162 rafter for one-foot run on the blade, the bladegiving the cut. Thus it will be seen that whenthe principles of roof framing are understood itis not necessary to lay out an elaborate diagram. 146 PRACTICAL CARPENTRY A simple line drawing, like that shown in Fig. 161,illustrates all that is…
