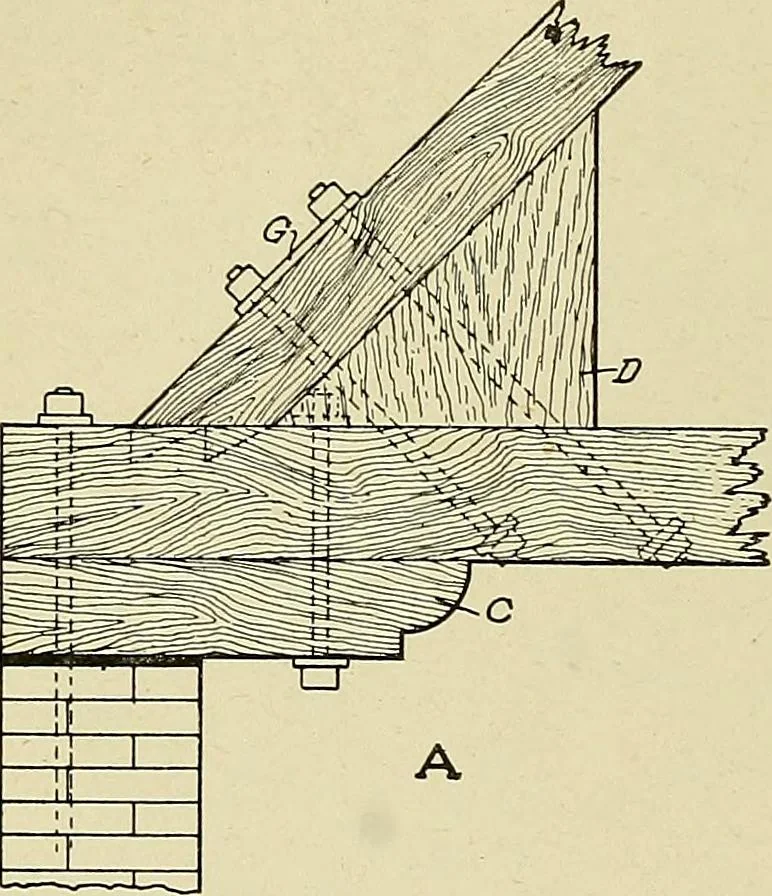

his point, where the beam is subject to consider-able bending stress. The block D is merely for filling and to pro-tect the bolts where they pass between the chord and the tie-beam.It may be omitted in many cases. The plate G is placed betweenthe nuts or bolt heads and the wood to prevent the…
