Cyclopedia of architecture, carpentry, and building; a general reference work .. (1912)
American School (Lansing, Ill.) · Chicago, American school of correspondence · leaf 284

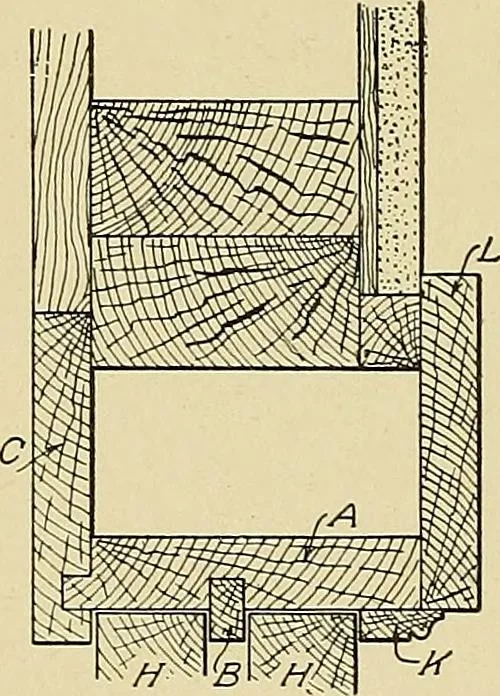

ey stile at the top. In the figure F arethe upright studs at the sides of the rough window opening, and Eare the rough pieces which form the top of the rough opening. D isthe parting strip at both the side and the top of the window opening. In Fig. 311 is shown a section taken vertically through… … Fig. 309. Section ShowingPulley Stile Construction 232 CARPENTRY 221 and allow this member to be let into it. The space K between theyoke and the rough framing EE is filled with rough blocking. F isan outside architrave similar in all respects to that which occursat the sides of the opening. It is…
