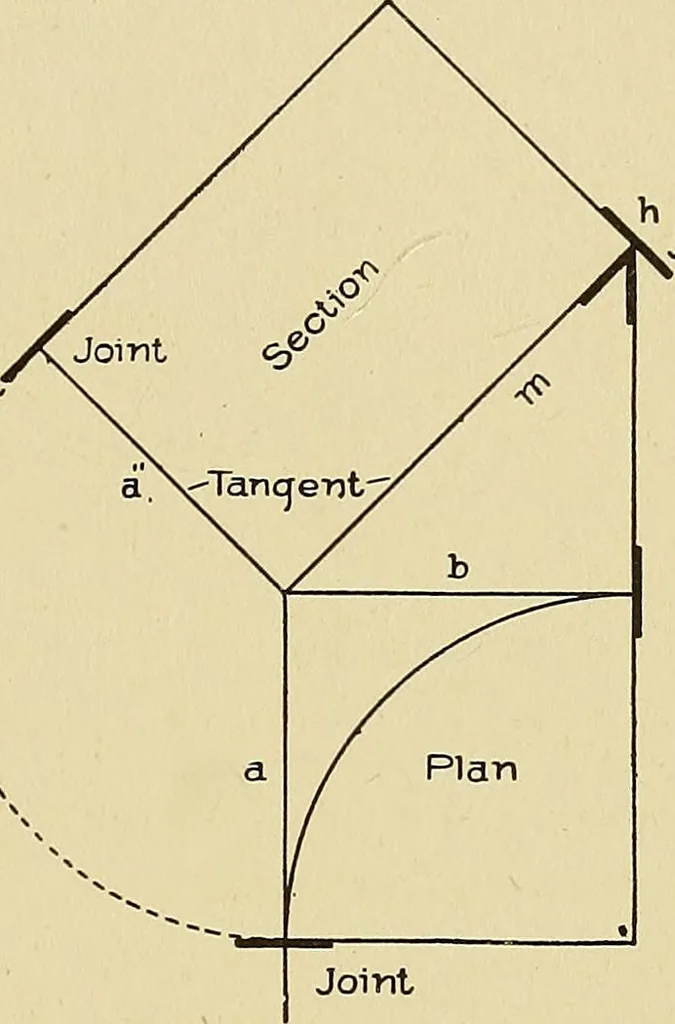

ld be similar to Fig. 90. To find the correct angle for the tangents of the face-mould,draw the line m from d, square to the inclined line of the tangentsc d; revolve the bottom inclined tangent c to cut line m in n, wherethe joint is shown fixed; and from this point draw the line c to w.… … Fig. JointFinding Angle between Tangents. 311 48 STAIR-BUILDING
