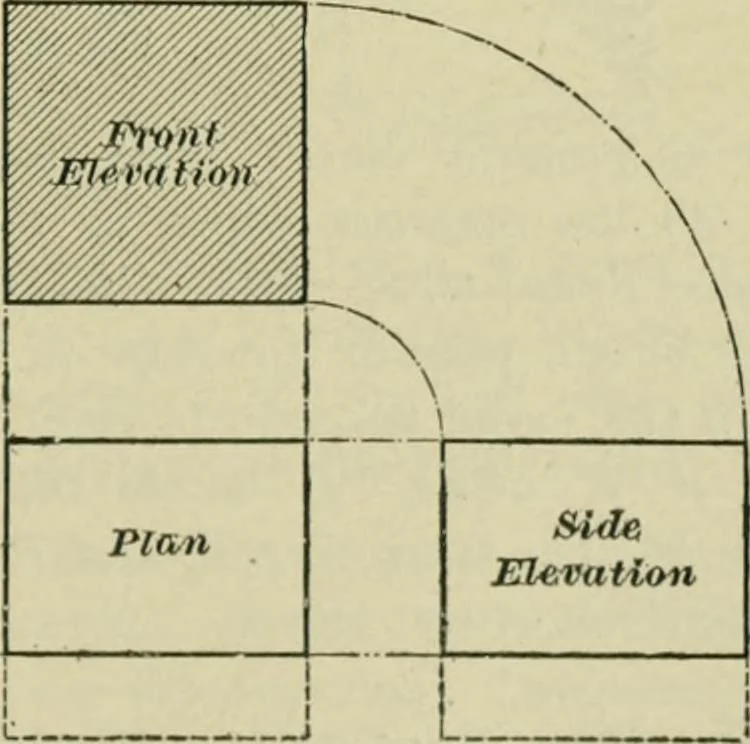

hesphere, as it is called. If the cutting plane intersects thesphere in any other way, the section is still a circle, but ofsmaller diameter, and is measured from a view in whichthe cutting plane is shown on edge. 78. Sections of drawing of the cubereferred to in for-mer illustrationsand shows a… … Fig. 30 73 PRACTICAL PROJECTION 15 of regular prisms where the cutting plane is parallel tothe ends of the prism. Fig. 31 represents a diagonalsection of the cube, the measurements of which will beapparent to the student from an inspection of the drawing.Fig. 32 is an oblique section, in which but…
