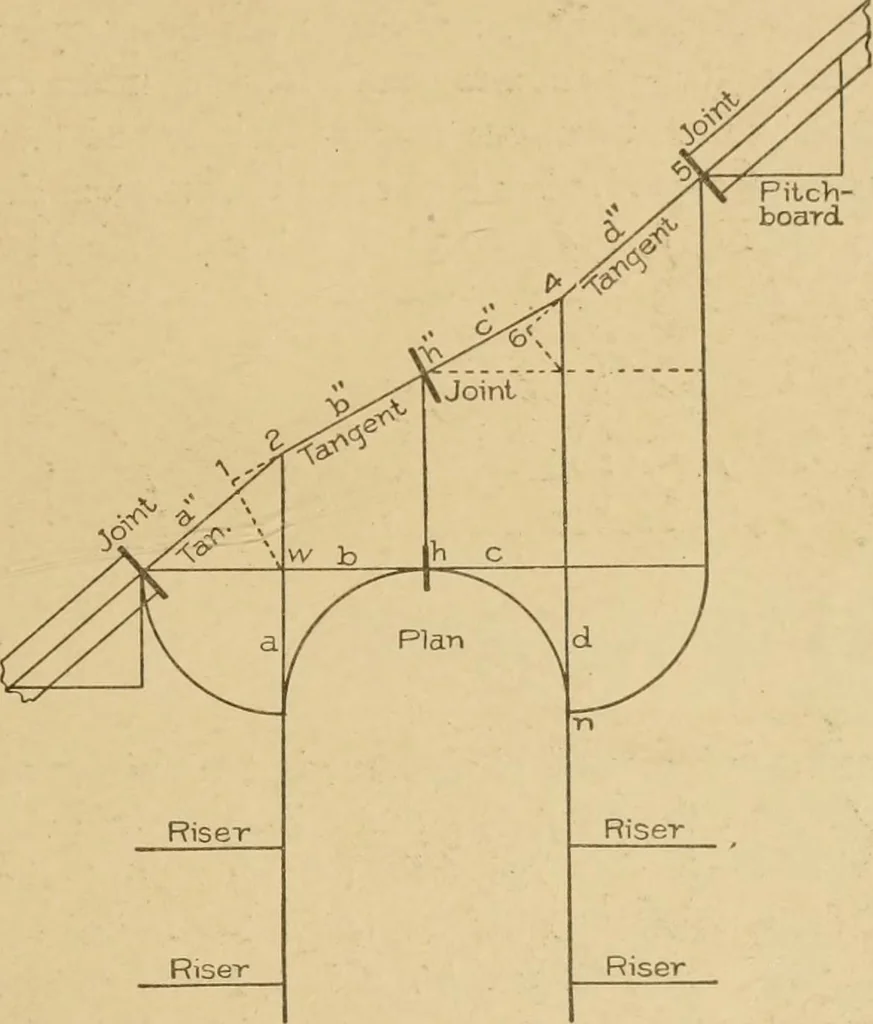

find the true angle betweenthe tangents as it is required on the face-mould to square the iointsof the wTcath at h. In Fig. 89 the same pitch is shown given to tangent m as in Fig.94; and in both figures the pitch is shown to be the same as that overand above the upper connecting tangents c and r/,… … 203 52 STAIR-BUILDIXG upon tlie pitch-line of the tangents over the well-hole. The anglesbetween the tangents of the face-moulds have been found in thisfigure by the same method as in Figs. 89 and 92, which, if comparedwith the present figure, will be found to correspond, excepting onlythe curves…
