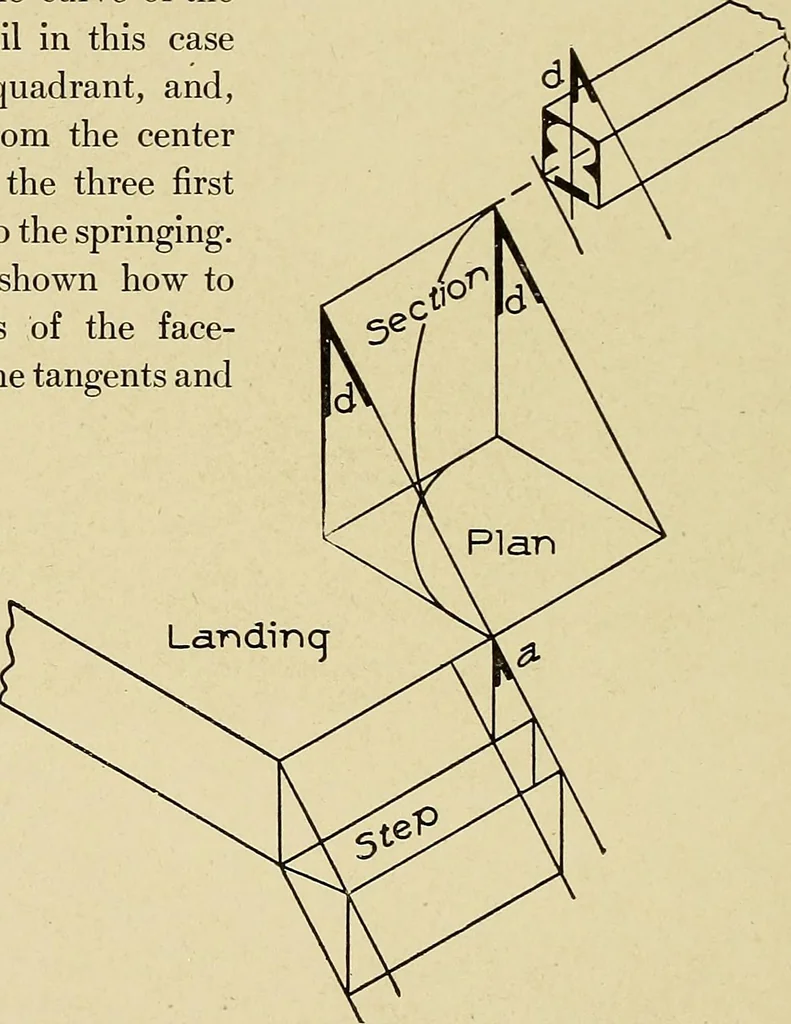

Fig. 107. Finding Bevfil, Bot-tom Tangent Inclined, TopOne Level. … Fig. 108. Application of Bevels in Fitting Wreath toRail. curve of the plan in full size. Fix point 3 at a height equal to 3risers from the floor line; at this point place the pitch-board of theflight to determine the pitch over the curve as shown from 3 throughb to the floor line. From the newel,…
