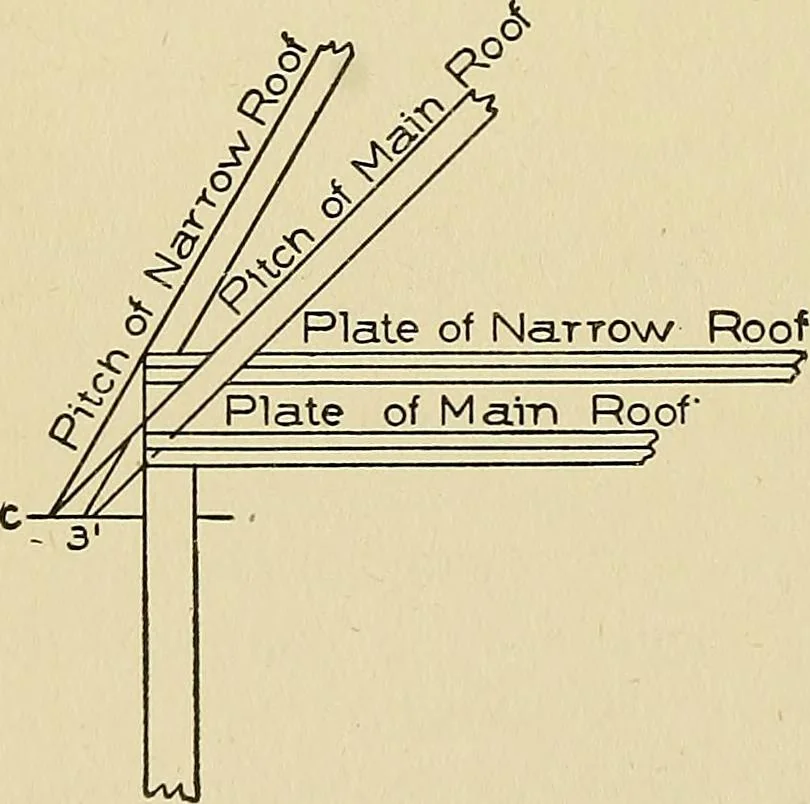

nd to, draw the ele-vation lines to the apex o, inter-secting the line of the roof in dand c. From d and c, drawthe lines d v and c a parallelio X y\ from c, drop a line to in-tersect the plan line ao in c.Make a w equal in length to a oof the elevation, and connect w c; Fig. 41. Showing Relative… … 368 THE STEEL SQUARE 27 Seat of Valley the two hips shown at o o in Fig. 36, both being equal hips intersect-ing the roof at an equal distance from the plate. The bevel atwis thetop bevel, and the bevel at c will fit the roof. Again, drop a line from d to intersect the plan line azind.Make a 2…
