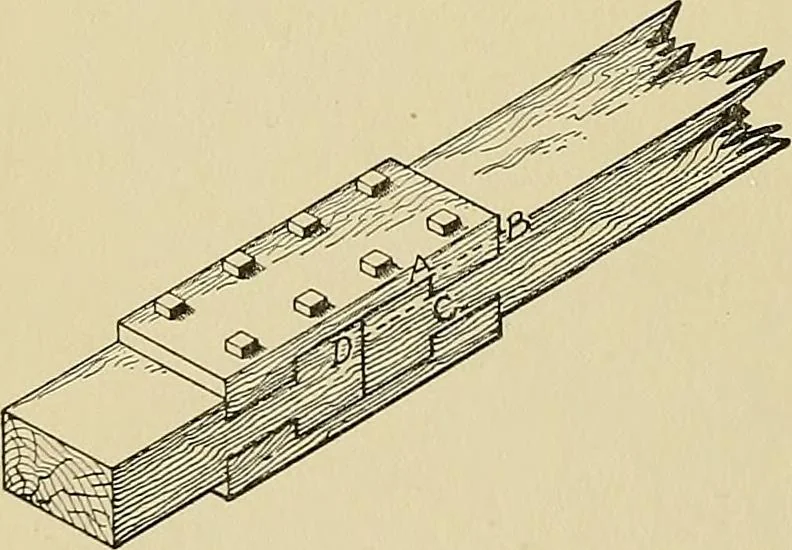

se of wood, are cut into the two pieces to be spliced, soas to hold them firmly together.The pieces can not be pulled apartuntil one of the plates shears offalong the dotted line A-B. The dis-tance C-D must also be made largeenough so that the piece will notshear. This splice is very oftenused for… … Fig. 63. Tension Splice with Fish Plates 68 CARPENTRY 59
