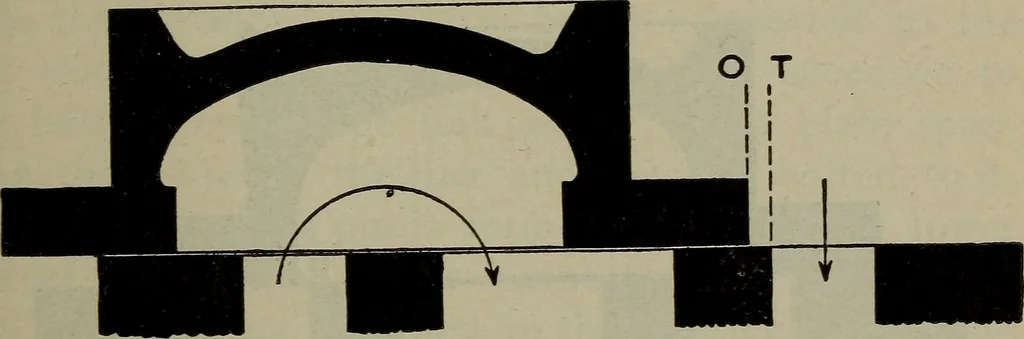

Figure 57 causes the exhaust port at one end of the cylinder tobe opened before the steam port at the other end isuncovered for the admission of steam. If a valve hadno outside lap it would admit steam throughout thewhole stroke, or in other words, follow full stroke. … Figure 58 Another bad effect of no lap would be a late exhaust,by which is meant that the exhaust would occur at oneend of the cylinder at practically the same momentthat admission occurred at the other end. This wouldhave a tendency to retard the motion of the piston.The term clearance, as applied…
