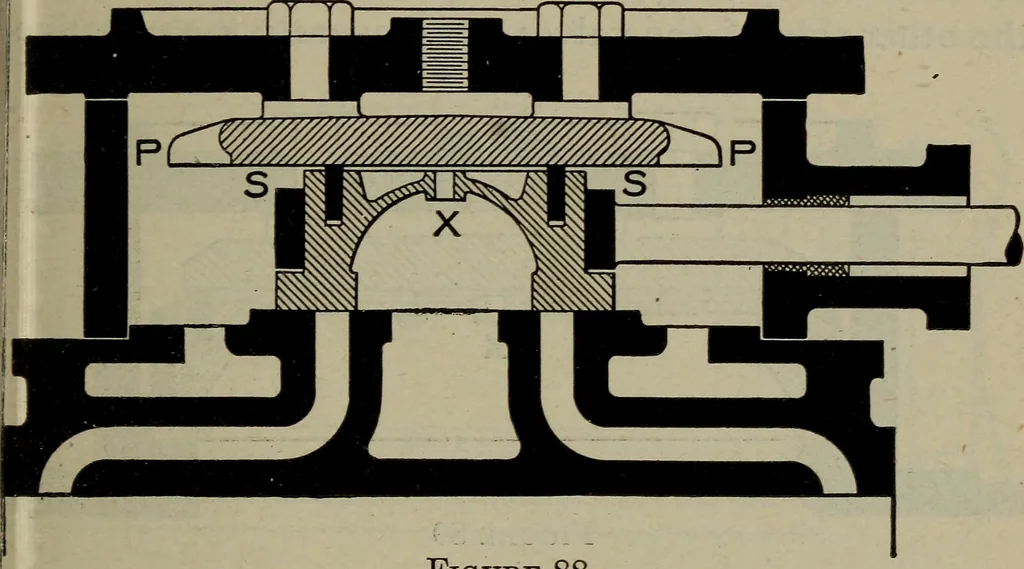

thepacking strips preventing the steam from entering PISTON VALVES AND BALANCED VALVES i$»j his space, and the small hole X, communicating withhe exhaust cavity in the valve, relieves space R frommy possible accumulation of pressure. The four packing strips consist of two longer ones,vhich are… … Figure 88 is placed which holds these strips in position againstthe balance plate when steam is shut off. In operation these different sections maintain a steam-tight contact, by a direct steam pressure, with thebalance plate and with the inner surfaces of thejgrooves provided to receive them, the…
