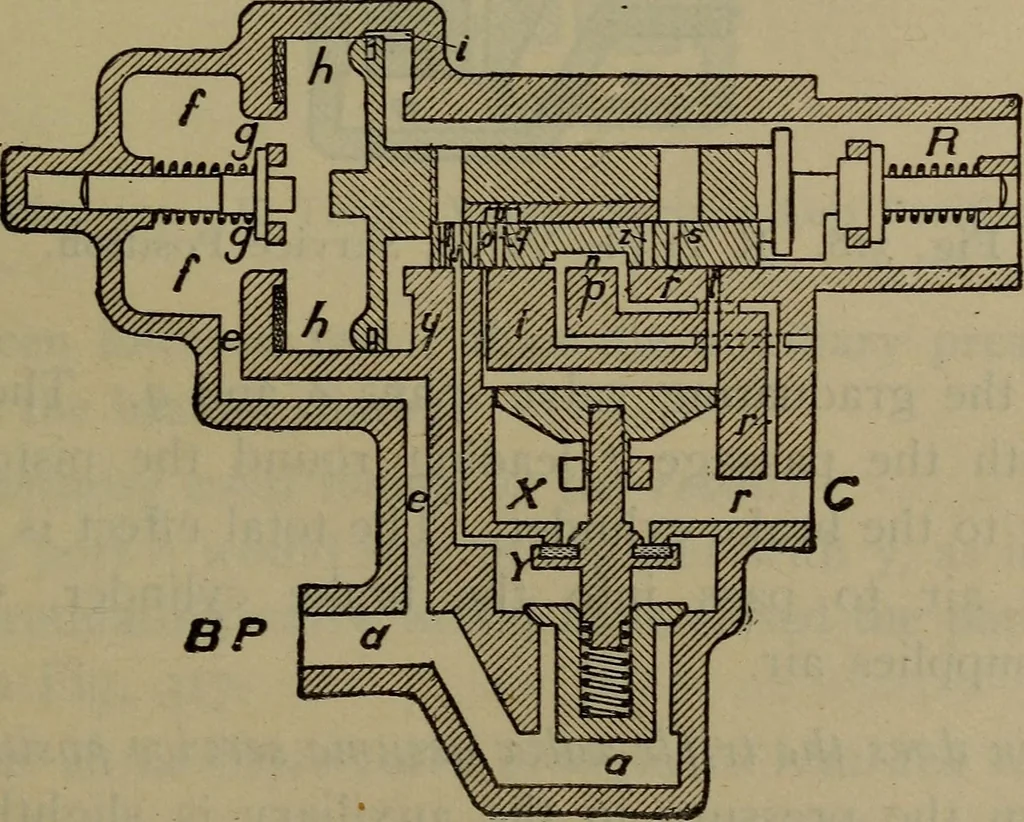

From Brake Pipe Fig. 314. Sectional View K Triple Valve. chamber R and the auxiliary reservoir. This charges the auxil-iary reservoir with the same pressure as in the brake pipe. Q. How would you explain the operation of this valve inservice position? … Fig- 3X5- K Triple Valve, Full Release. 474 LOCOMOTIVE CATECHISM. A. Referring to Fig. 316, which shows the valve whilethere is being made a service reduction in the brake-pipe press-ure: The triple piston has been moving to the left until it hasreached the graduating stem, and has carried with it…
