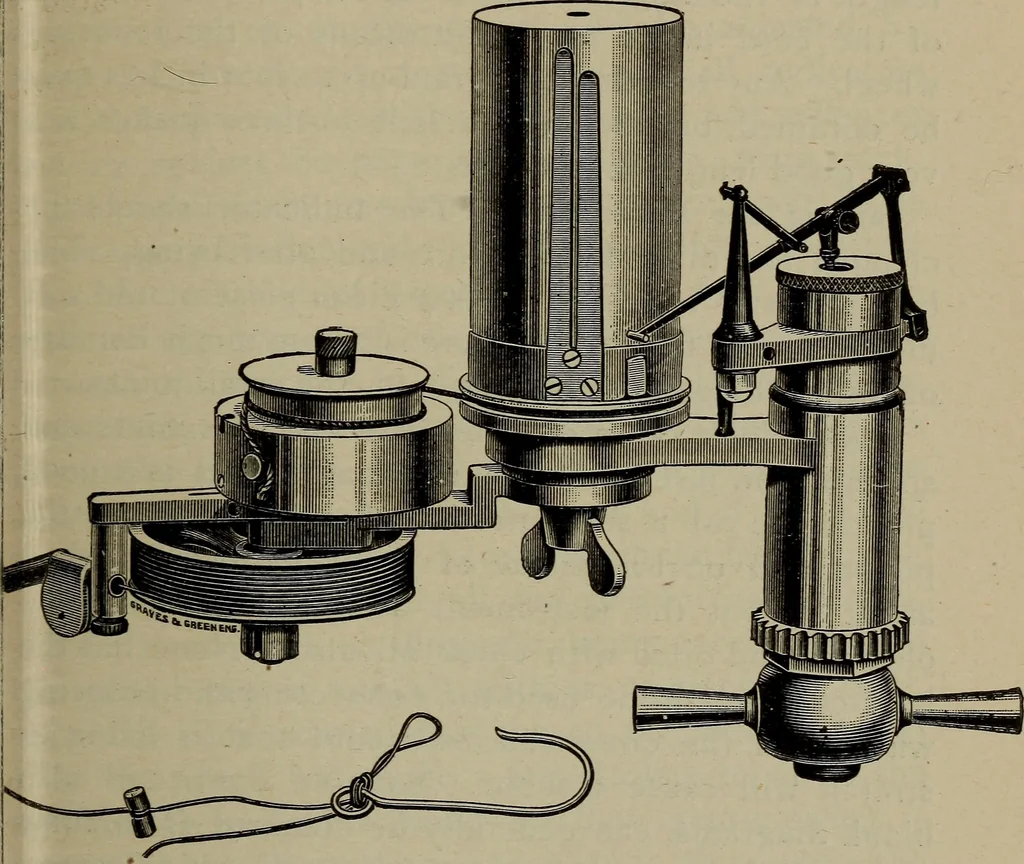

tice to bring thetwo end connections together at the side or top of thecylinder and at or near the middle of its length, wherejthey can be connected to a three-way cock. The pipe I THE INDICATOR 209 connections should be as short and as free from elbowsas possible, in order that the steam may… … Figure 102 the open three-way cock during several revolutions ofthe engine, before connecting the indicator. If thisis not done there is a moral certainty that dirt and gritwill get into the cylinder of the indicator and cause itto work badly, and give diagrams that are misleading.As before stated,…
