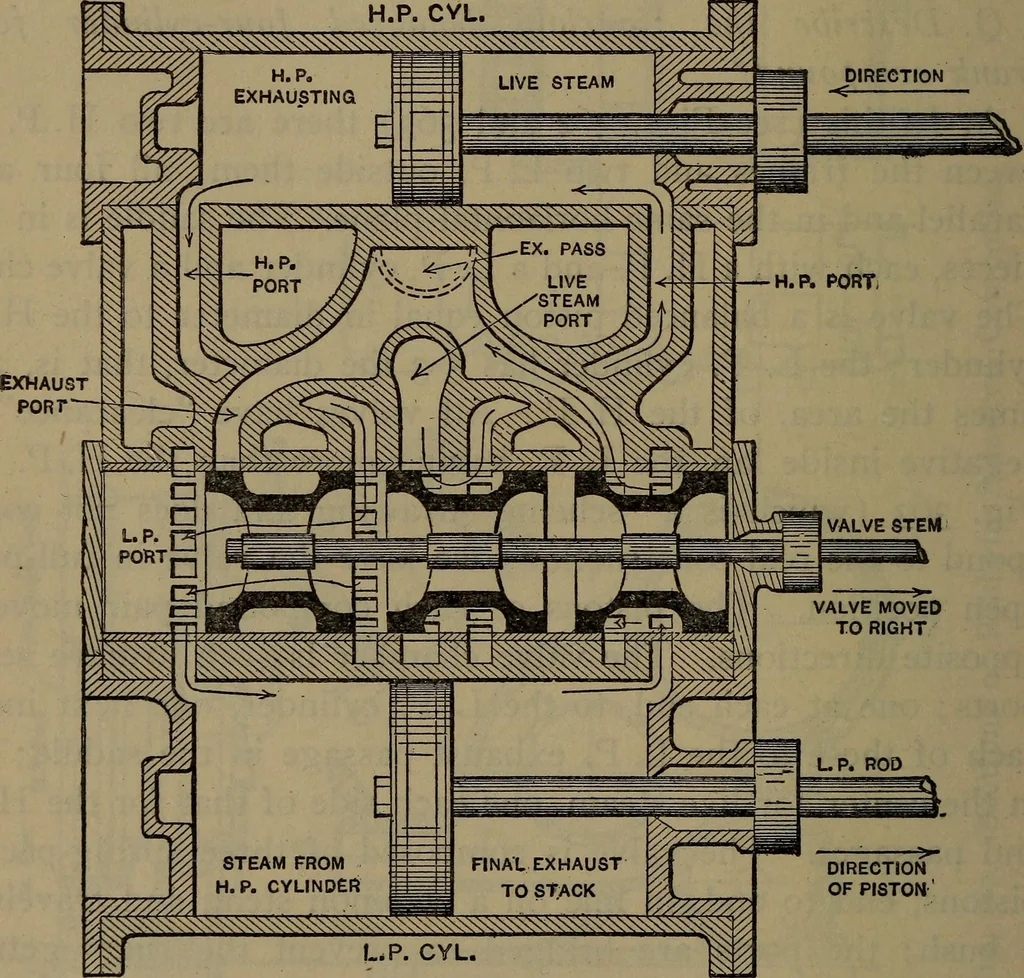

st of the right-hand end of the L. P.cylinder can escape into the stack. The left-hand valve sectionF has opened the left-hand L. P. port G to the L. P. cylinder(front end) and the middle valve section has opened the H. P.port to the valve center, letting the exhaust from the left-hand 556… … DIRECTIONOF PISTON Fig. 363. Cylinders and Valves of Balanced Compound. guides. The L. P. crosshead is connected with the main driv-ing wheel (which is the front one) ; the main axle has twoinside cranks 90 deg. apart, each driven by one of the H. P.pistons. Each H. P. crank-pin is 180 deg. from…
