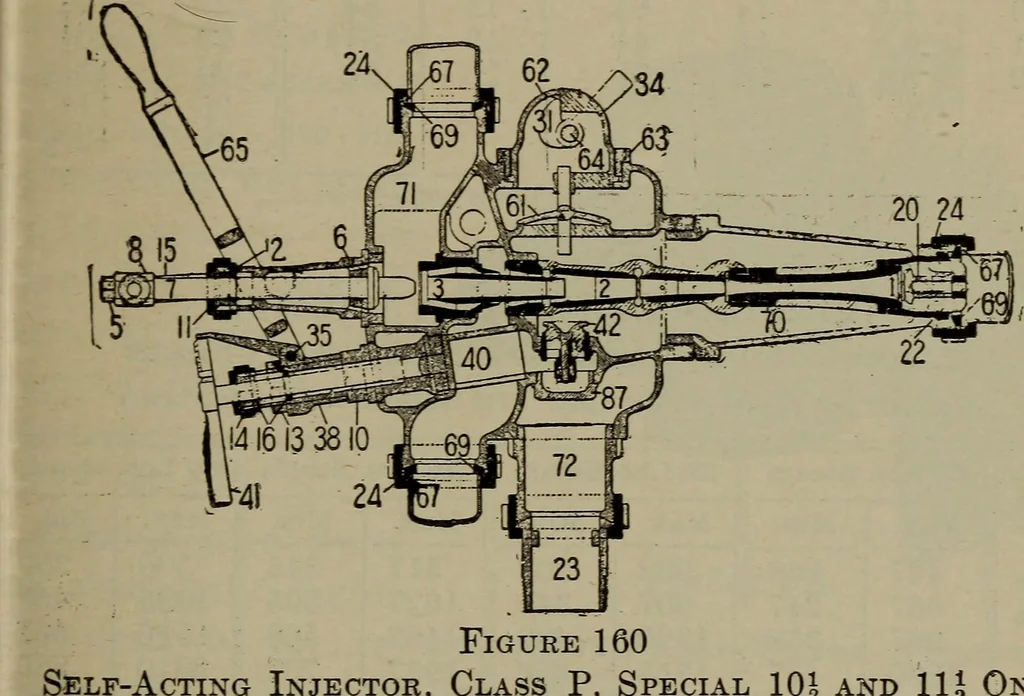

remove the INJECTORS, STEAM GAUGES, ETC. 347 little nut (5) and draw back the lever (33). This freesthe crosshead (8) and links (15), which can be swungout of the way, and the follower (12) tightened on thepacking to make the gland steam-tight. The Improved Self-Acting Injector is speciallyadapted… … Figure 160self-acting injector, class p, special 10| and 11| only highest steam pressures used on locomotives down to35 pounds steam without adjustment and without wast-ing at the overflow, and by regulating the water-supplyvalve on the injector it can be operated at 15 pounds.As it restarts…
