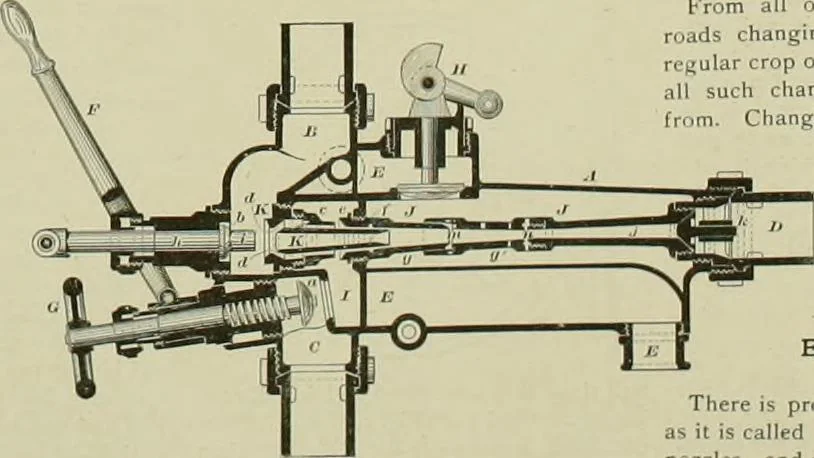

/■ is out of the forcing nozzle A, allowingthe steam to pass through the forcing noz-zle A and come in contact with the annu-lar jet of water which is flowing into thecombining tube around the nozzle K. … This jet of water has already considerablevelocity, and the forcing steam jet impartsto it the necessary increment of velocityto enable it to enter the boiler throughthe delivery tubey and boiler check k. Ifnow from any cause the jet should bebroken—say from a failure in the water supply—the steam…
