Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 369

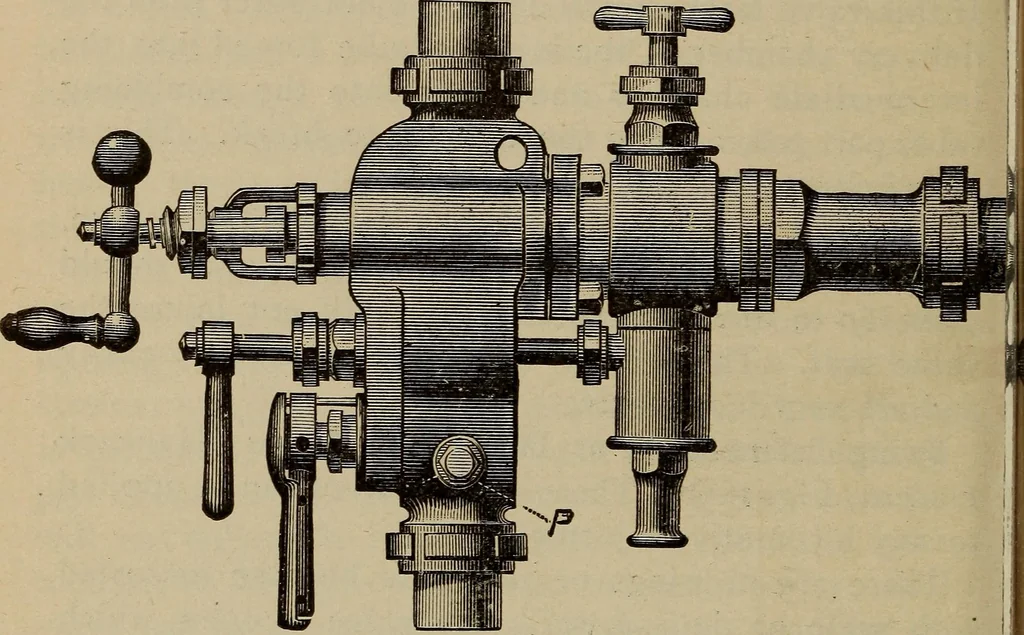

ing rods extending into the cab.Steam should be taken from dome or highest part ofboiler to insure best effects. Its Range, It does not waste water at overflow by 3^4 LOCOMOTIVE ENGINEERING ordinary variation of working steam pressure, butsteadily performs its duty, whether the water-valve iswide… … Figure 166The Monitor, Exterior View running heavy as well as light trains, the quantity ofwater needed being easily regulated by the water-valveattached. Reliability. It is provided with an independent lift-ing jet, which enables the injector to start promptly atall times. This is a peculiar…
