A catechism of the steam engine and its various applications to mines, mills, steam navigation, railways, and agriculture (1876)
Bourne, John, civil engineer. [from old catalog] · New York, D. Appleton and company · leaf 364

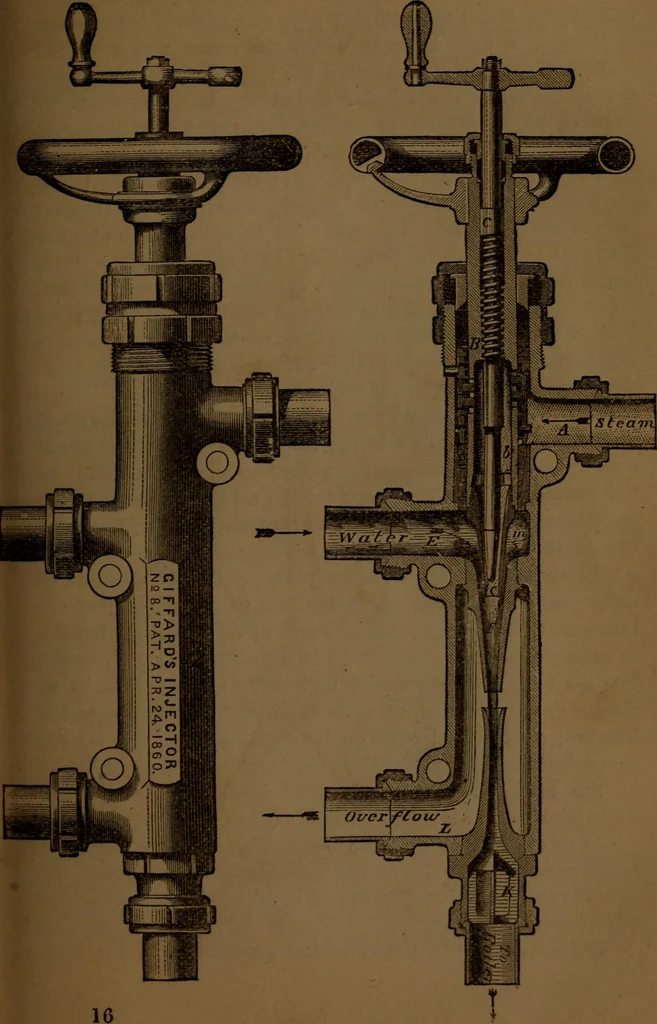

GIFFARD S INJECTOR. Fig. 65. Fig. 66. 349 … 350 giffards ixjectok. in connection with tlie atmosphere, intervening between dis-charge pipe F and the receiving pipe through which the wateris forced. 7, tube through which the water passes to theboiler. K^ valve for preventing the return of the water fromthe boiler when the injector is not…
Steam engineering · Steam-engines
