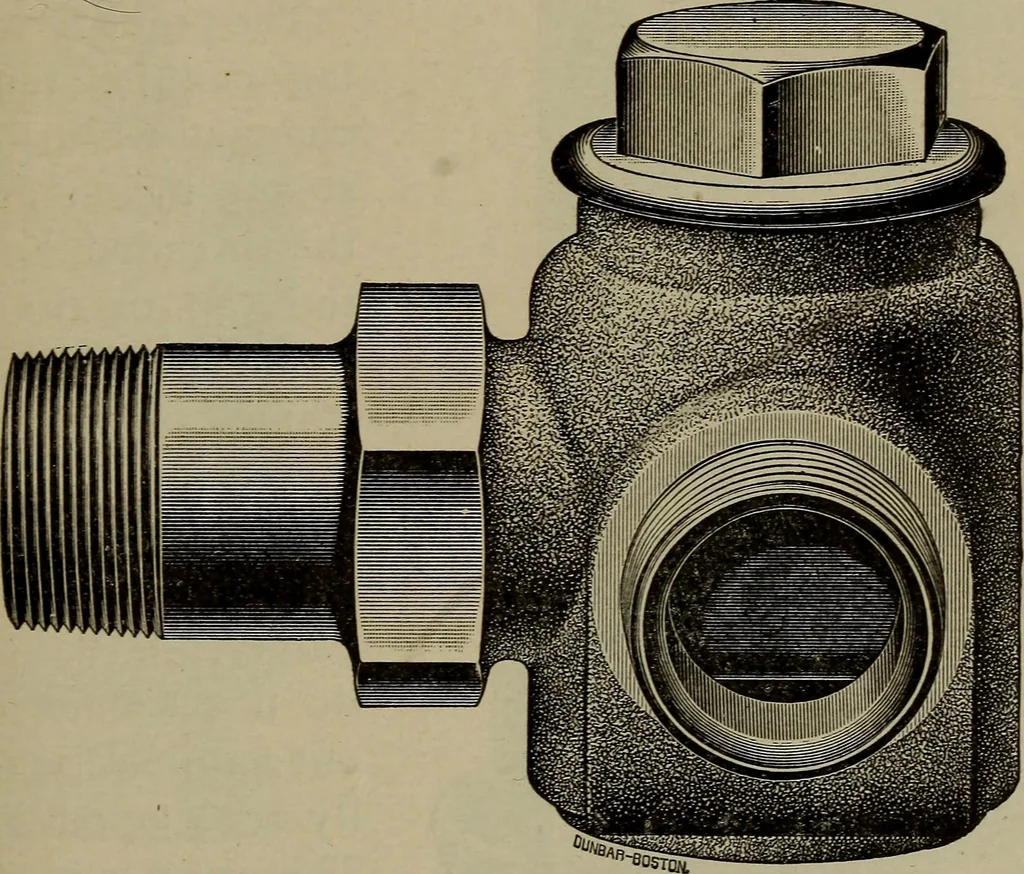

INJECTORS, STEAM GAUGES, ETC. 395 pound of the maximum pressure required, the valveopens slightly, and the steam escapes through theouter seat into the cylinder and thence into the air;the steam also enters through the inner seat into thewell, and thence through the passages in the arms tothe air.… … Figure 185Crosby Spring-Seat Locomotive Check Valve is admitted into the well faster than it can escapethrough the passages in the arms, and its pressurerapidly accumulates under the inner seat; this pressure,thus acting upon an additional area, overcomes theincreasing resistance of the spring, and…
