A textbook on the locomotive and the air brake (1901)
International Correspondence Schools · Scranton, Pa., International textbook co · leaf 398

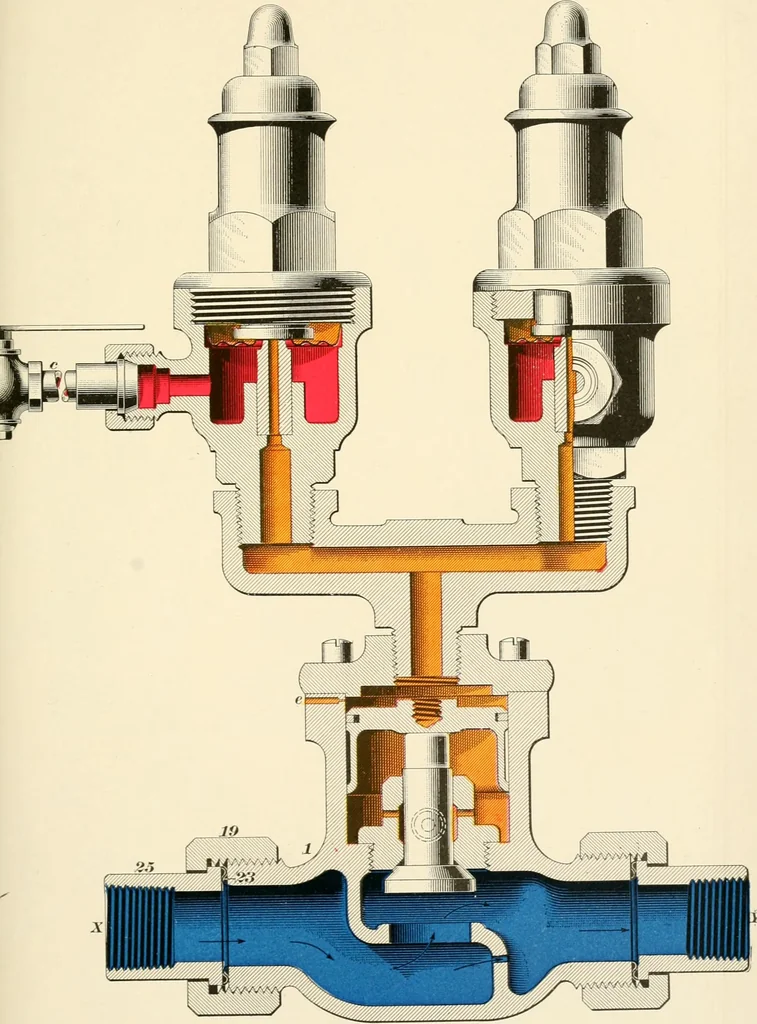

ing spring; 11, the graduating-stem nut;and 12, a leather gasket. The space marked C is called the slide-valve chamber; g isthe exhaust cavity in the face of the slide valve 3; k, the tripleexhaust port; m, a small feed groove in the piston bushing; andn, a groove in the shoulder of the triple… … §18 THE NEW YORK AIR BRAKE. 17 of it. The branch pipe from the train pipe connects with thetriple at W; the pipe leading from the brake cylinder connectsat X; while the connection to the auxiHary reservoir is madeat Y. Chanil)er C, as will be evident on studying the figure,is charged with auxiliary…
Locomotives · Locomotive boilers · Railroad cars
