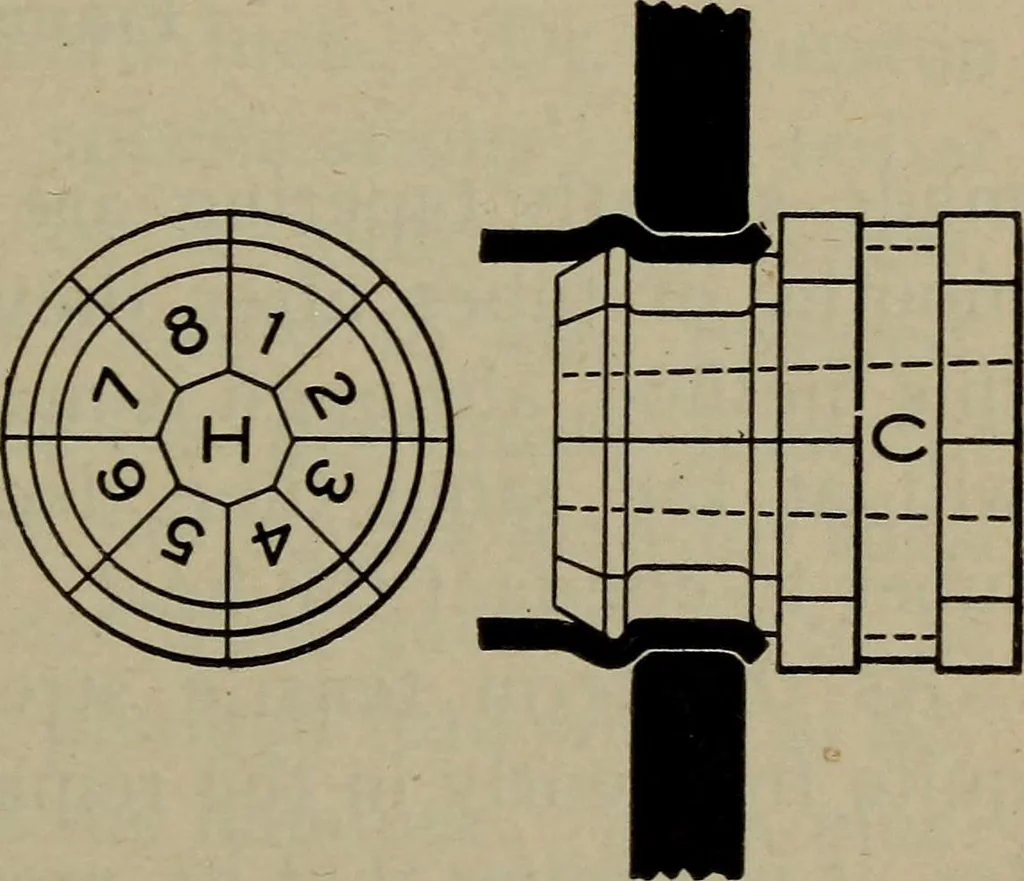

beinside the sheet, and T T indicates the manner inwhich the end of the tube is expanded and beaded overonto the outer edge of thehole. The Dudgeon rollertube expander, shown inFig. 19, consists of a hol-low plug having a sleeveor cap at one end thatbears against the outsideof the sheet, thus… … 56 LOCOMOTIVE ENGINEERING also move a short distance outward from the center of the plug. In using this expander the plug is in-serted into the mouth of the tube as far as the capwill permit, A tapered mandrel is then driven intothe central opening, and the rollers are forced outagainst the inner…
