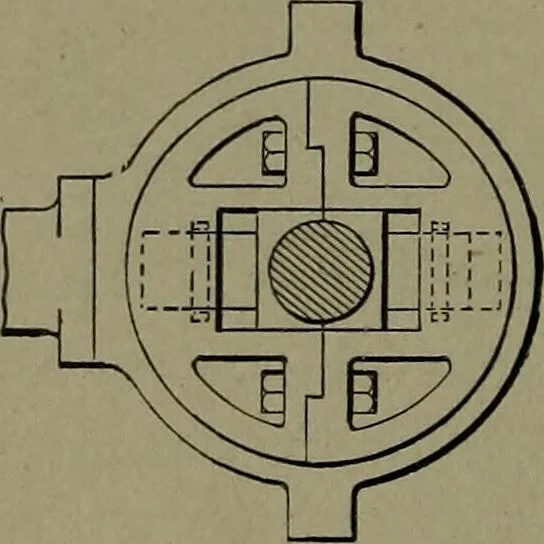

^^^M 269. SIMPLE REVERSING GEAR forsteam engines. On raising the eccentric rod thevalve spindle is released from the hook, whenthe engine can be reversed by the hand lever;the eccentric then runs back by friction a halfturn, it being loose on the shaft, and the key shoulder cut away to allow the… … 270. JOYS HYDRAULIC SHIFTINGECCENTRIC— The centre block is keyed tothe shaft; pistons on each side of the blockwork in cylinders in the eccentric. Oil is pump-ed to one or the other piston through holes inthe crank shaft and piston, for reversal of theengine.
Mechanical movements
