Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 633

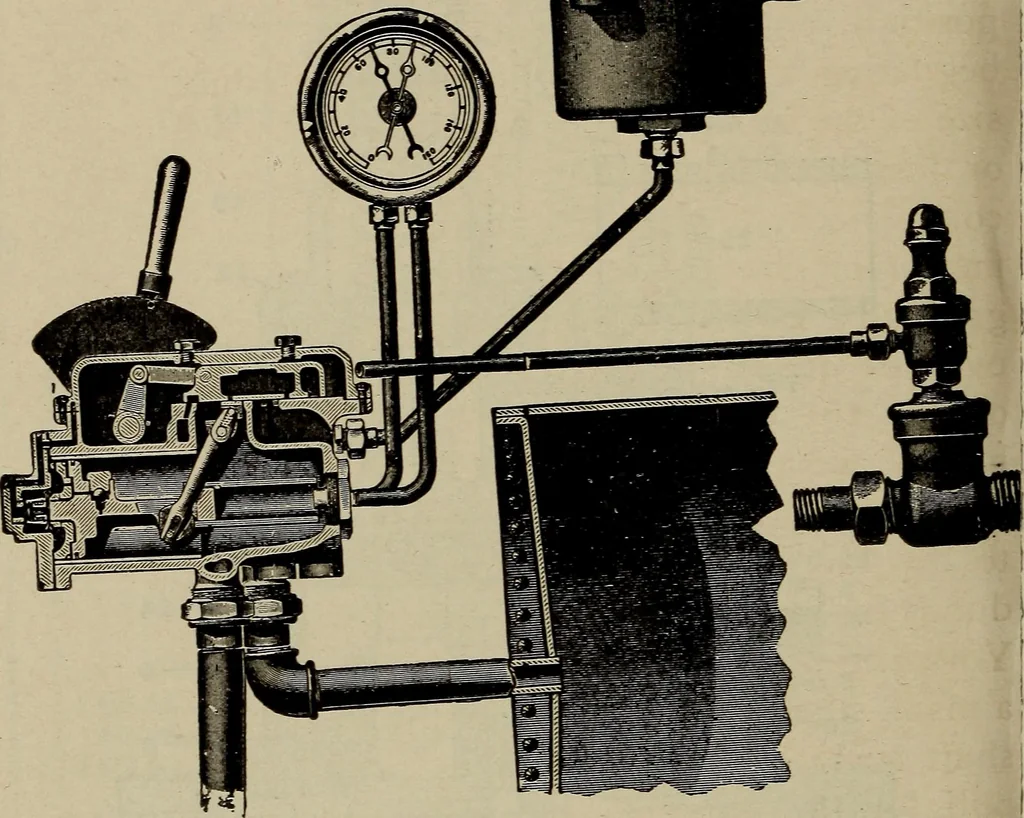

vernor a key with which to set the regulating spring, and isshown in Fig. 247. The duplex pump governor issimply a governor with one steam portion, but havingtwo air portions. A duplex governor consists of one 59o LOCOMOTIVE ENGINEERING steam valve bodv, steam valve, steam valve piston,and a… … Figure 248 Genera. Arranoement or Brake VaLve, ^^Reservoir, Am Gauge, Pump Governor and Main Reservoi. the Westinghouse engineers brake valve shoulremember when studying the engineer s brakvalve of the New York duplex system that, wheservice application is made with the New Yorengineers brake…
Locomotives
