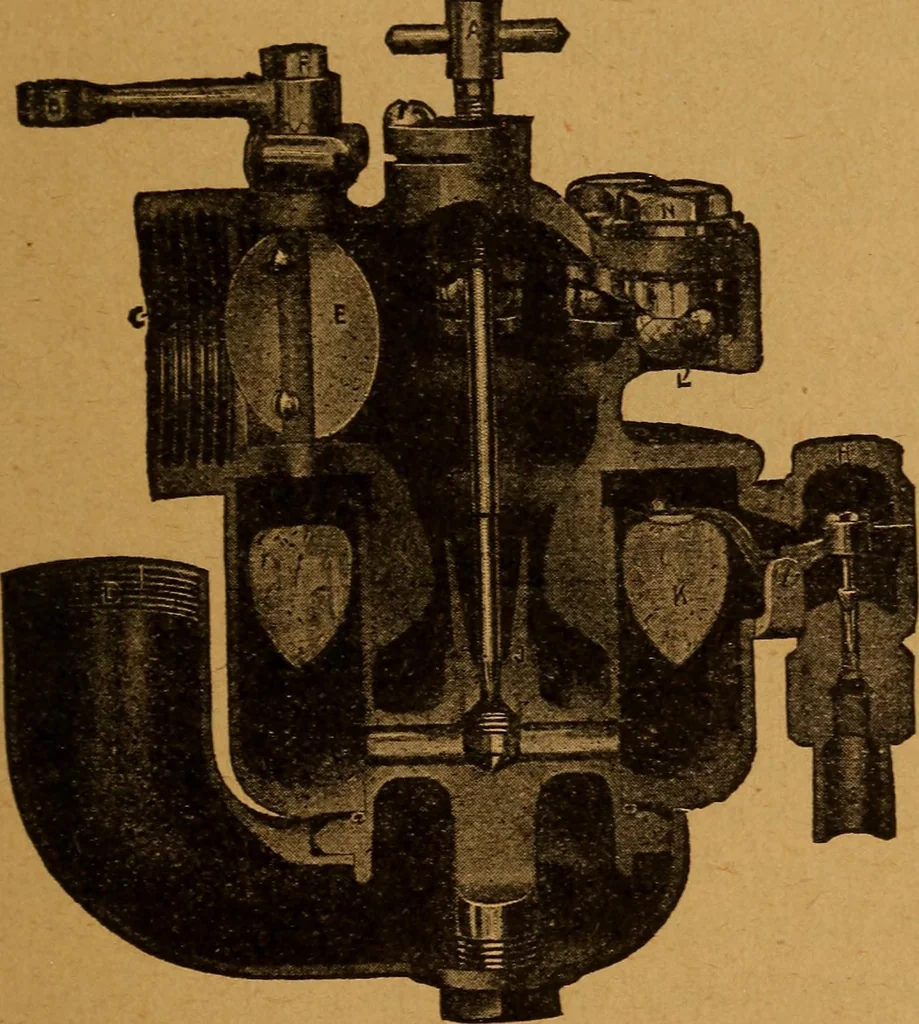

a curved restrictionin the air intake passage, is known as a Venturi tube, whichinsures a constant relation between the air and fuel supplies.As the action of the Venturi tube is rather complicated, it willnot be taken up in detail. Air is supplied to the Venturipassage through the intake (D). An… … Fig. 117. Cross-Section Through Kingston Carburetor Showing BallsUsed for Auxiliary Air Valves. valve chamber. Gasoline enters the float chamber throughthe fuel pipe G, and enters the spray nozzle through the twoports in the base of the mixing chamber. The auxiliary air valve is a particularly…
