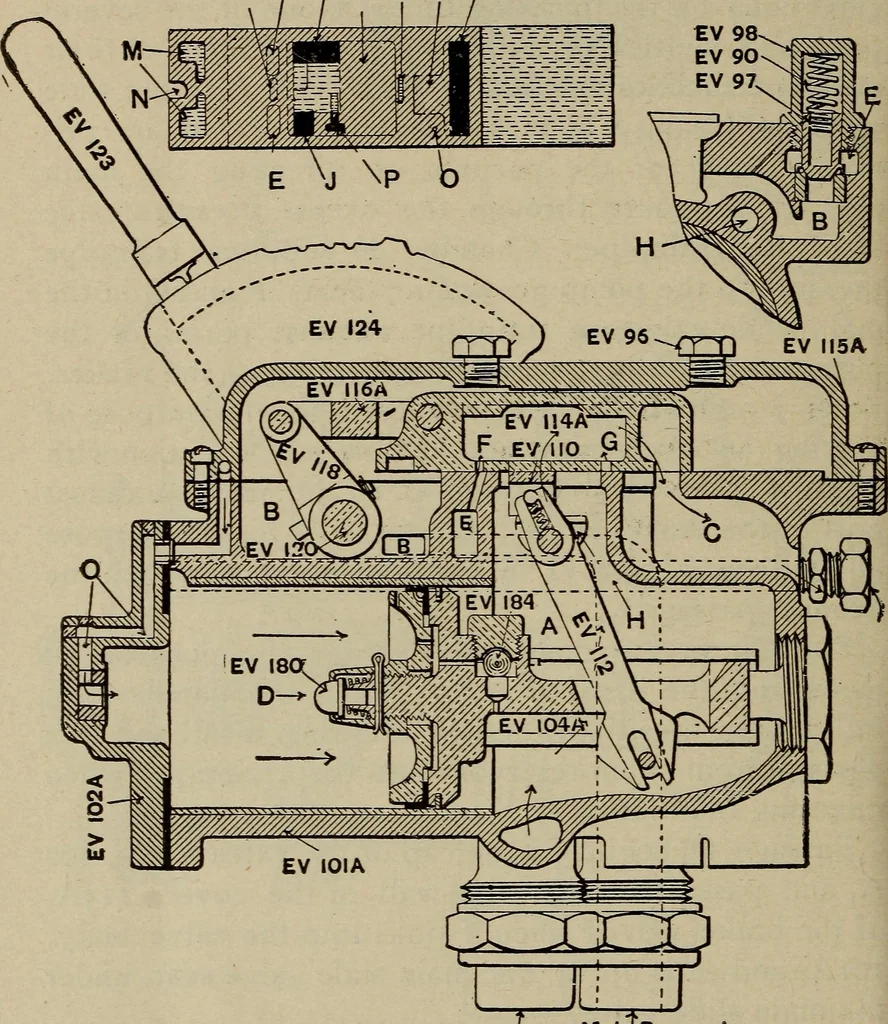

into the valve body,101A, and ends up in the main slide valve seat, underthe main slide valve. Passage H, which leads from chamber D, passesthrough the body of the brake valve to the pipe con-nection with the supplementary reservoir. A smallball valve, 184, in the equalizing piston is for the… … Main Reservoir Train PipeFigure 254New York Engineers Brake Valve, Emergency Position or release position. The vent valve in the end of theequalizing piston is for the purpose of controlling the AUTOMATIC AIR BRAKES 601 bottom end of passage O. The purpose of passageand port O is to allow the…
