Locomotive catechism; an up-to-date, practical and complete work on the locomotive--treating on the design, construction, repair and running of all kinds of locomotives .. (1908)
Grimshaw, Robert, 1850- [from old catalog] · New York, The N. W. Henley publishing company · leaf 540

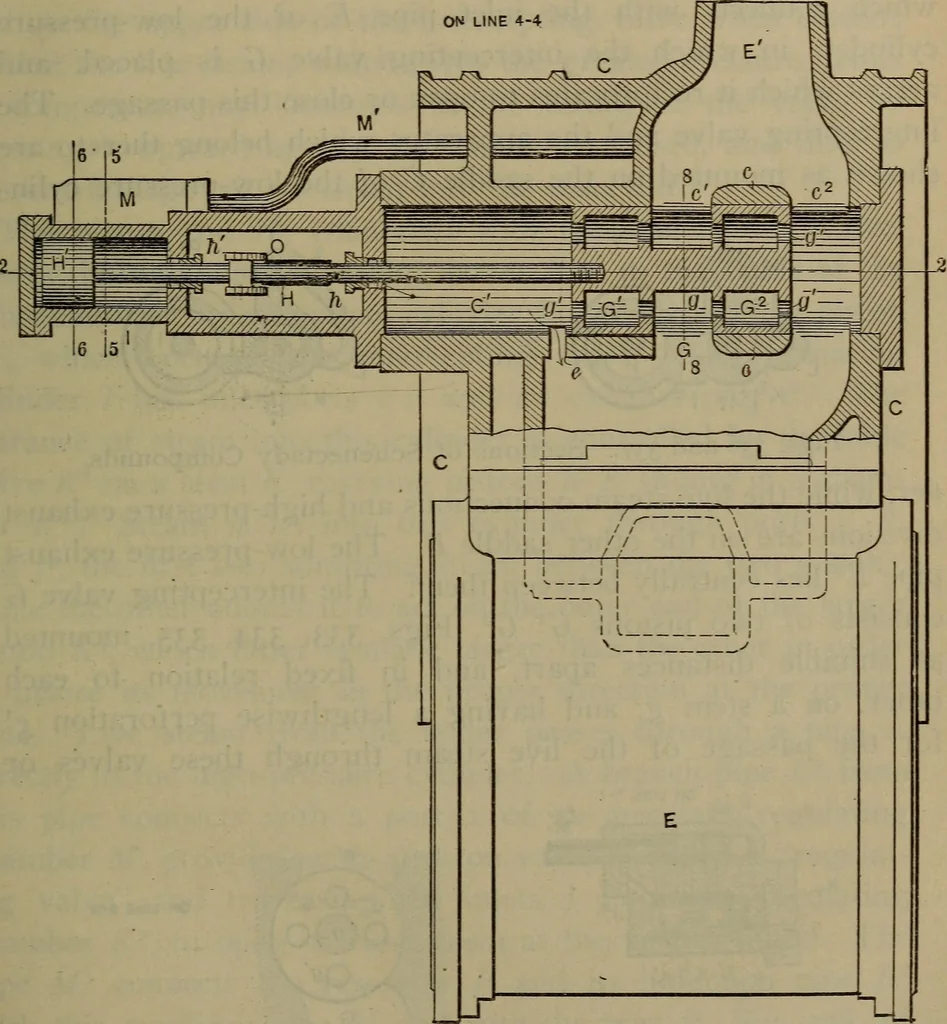

Fig. 334. Schenectady Compound, Working both Cylinders withLive Steam (see page 528). SCHENECTADY COMPOUND. sion on the line 7, 7 of Figs. 332,, 336 and 337; Fig. 339, avertical cross section through the intercepting valve on theline 8, 8, of Fig. 335. The feathered arrows show the courseof the… … Fig- 335- Section of Schenectady Compound Intercepting Valve. the movements of the regulating valve and the actuatingpiston of the intercepting valve. Fig. 332 shows a smoke-boxA on saddles B, C connected respectively with a high-pressure 526 LOCOMOTIVE CATECHISM. cylinder D and a low-pressure…
