Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 729

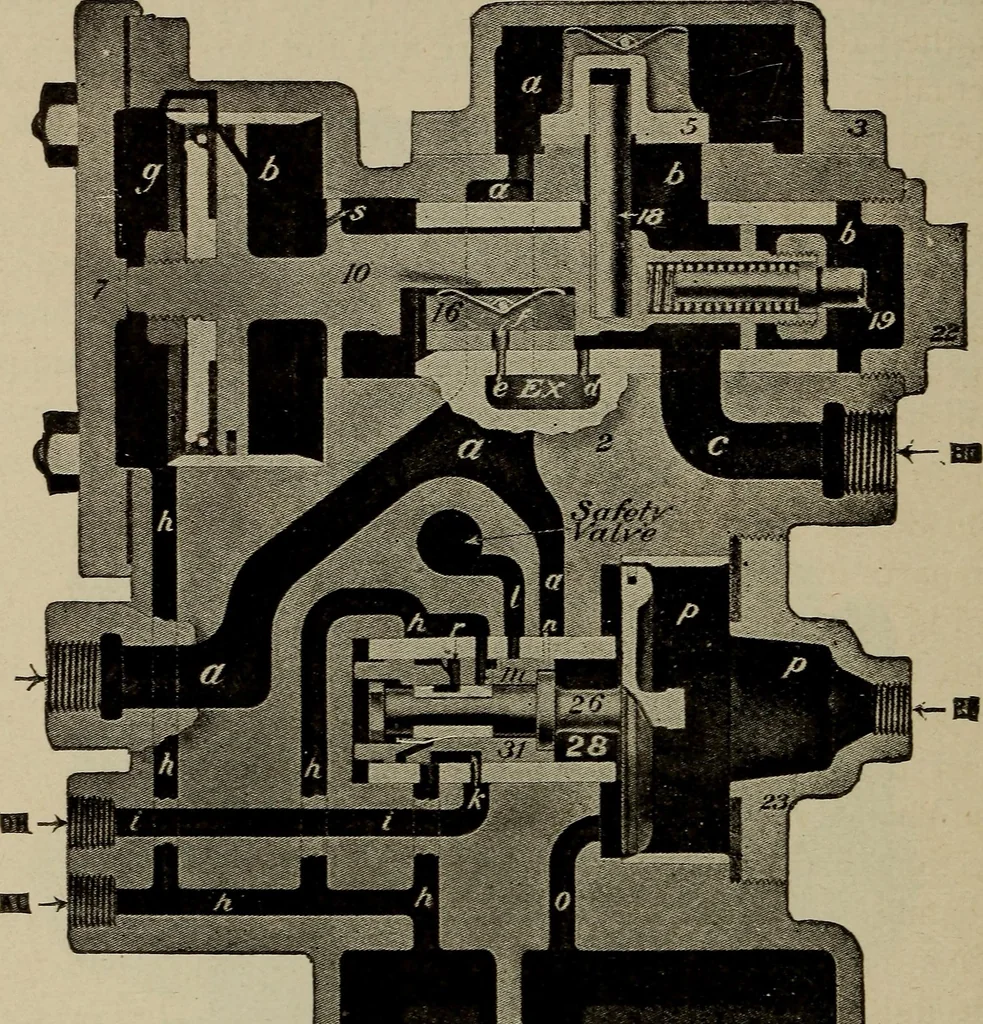

FIG. 297. DISTRIBUTING VALVE AND DOUBLE-CHAMBER RESERVOIR PIPE CONNECTIONS:Upper—Brake-Cylinder Pipe; Lower—Brake Pipe the reservoir; also the safety valve 34, which is an essen-tial part of the distributing valve. To simplify the tracingof the ports and connections, the various positions of this… … ration < Chamber PressureChamber FIG. 298. THE DISTRIBUTING VALVE, DIAGRAMMATIC CONNECTIONS: MR—Main-Reservoir Pipe; DH—Double-Heading- Pipe; AC—Ap-plication-Chamber Pipe; BC—Brake Cylinder Pipe; BP—Brake Pipe ET BRAKE EQUIPMENT 677 valve are illustrated in ten diagrammatic drawings; thatis, the…
Locomotives
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
