Practical mechanical drawing and machine design self taught .. (1907)
Westinghouse, Charles. [from old catalog] · Chicago, F. J. Drake & co. · leaf 114

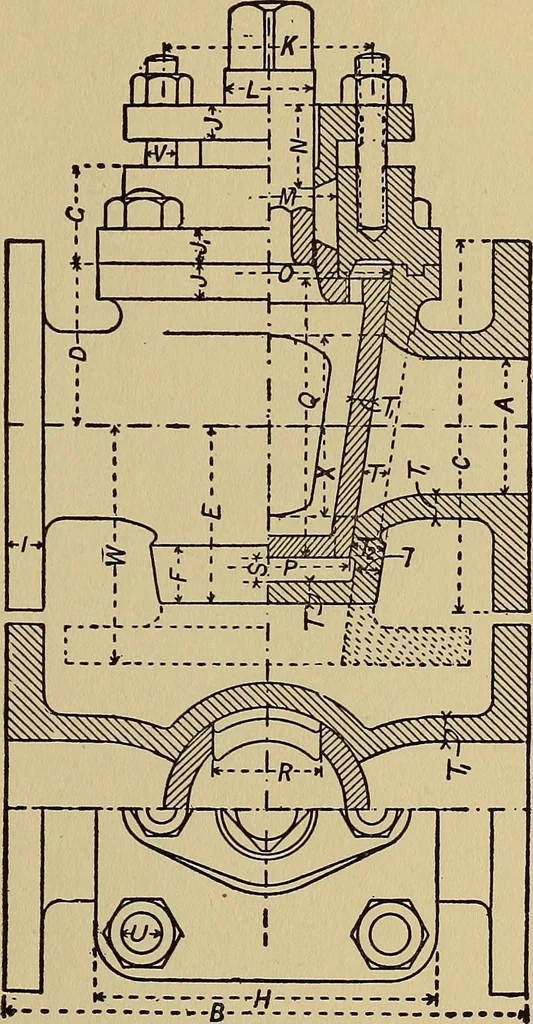

bolts are used, thegland flange is generally made circular as shownin the lower left-hand view. For two bolts thegland flange is of the form shown in the lowerright-hand view. When the gland is made of cast-iron it is generally lined with a brass bushing.When the gland is of brass no lines are… … Fig. 200—Steam Cock. 112 MECHANICAL DEAWING the pipe meeting at the plug may be in the samestraight line, or one may proceed from the bottomof the casing, as shown by the dotted lines. A 1% 2 2% 2X N 1 3 IX 1 5 1% B 7>i 7% 8X 9 0 3 3% Ql 3 4A C 5 5% 6 6% P 2tt 2% nl 1 3 D 1% 2A 2% 2% Q 3X 4 4X 5…
Mechanical drawing · Machine design
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
