Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 750

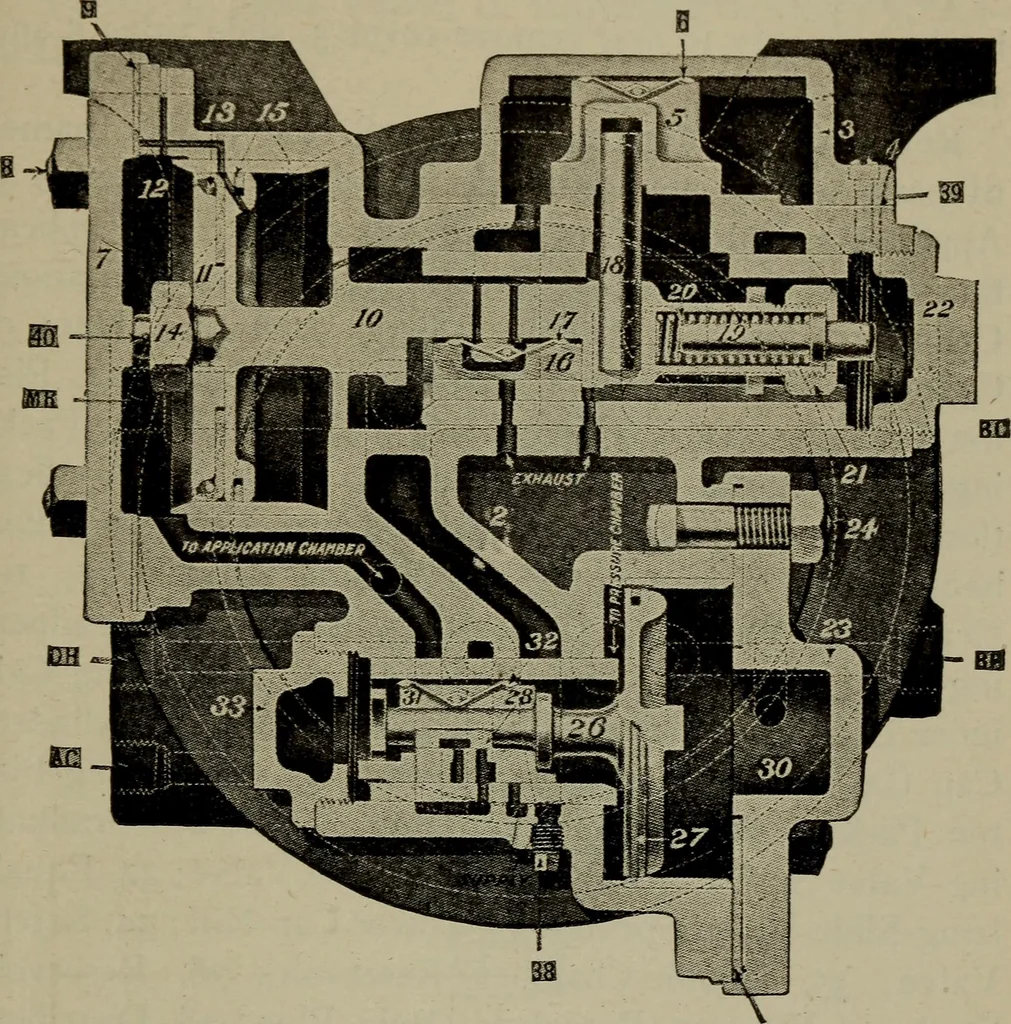

FIG. 307. GRADUATING VALVE, EQUALIZING SLIDEVALVE, AND SLIDE VALVE SEAT ET BRAKE EQUIPMENT 693 exception of the release, which is brought about by theequalizing piston 26 moving to the release position andcausing exhaust cavity in the equalizing slide valve 31 … FIG. 308. DISTRIBUTING VALVE CONNECTIONS:MR—Main Reservoir Pipe; DH—Double-Heading- Pipe; AC—Ap-plication-Chamber Pipe; BC—Brake-Cylinder Pipe; BP—Brake Pipe to connect ports i and h in the slide valve seat, therebypermitting the pressure in the application chamber toescape to the atmosphere…
Locomotives
