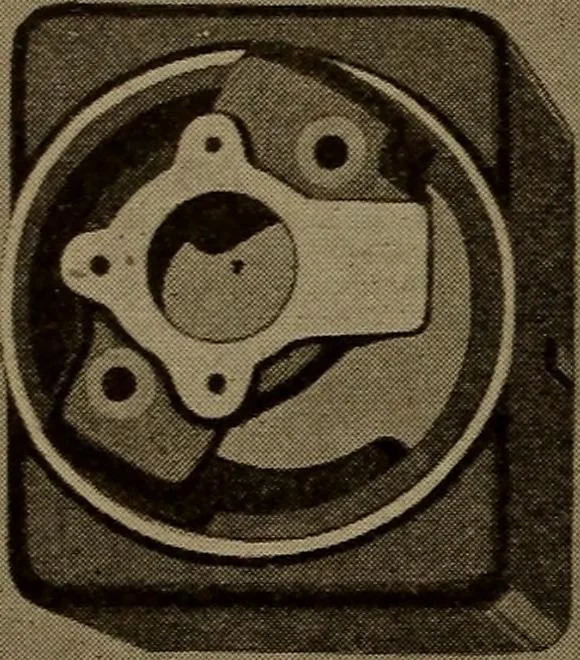

An illustration from Small motors, transformers, electromagnets; a practical presentation of design and construction data for small motors, small low- and high-tension transformers, electromagnets, and induction coils, 1920, leaf 143 — ctly the same as the regulator just described except that theback contact of the relay (which engages with the contact carriedby the armature), instead of being fixed, is made to oscillatemechanically by a cam attached to the generator shaft. The relaymagnet is thus relieved of the work of breaking… … GG-l A
