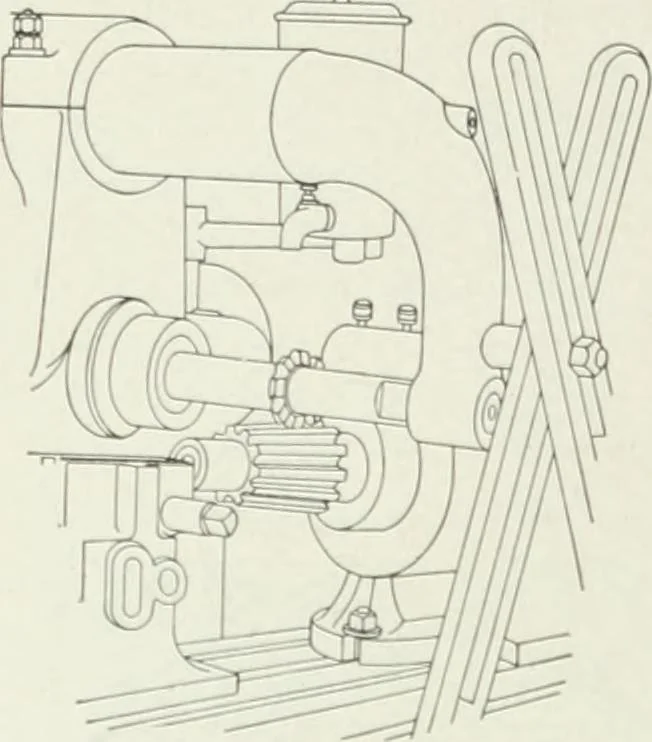

Pig. 221. 181 160 MACHINE SHOP WORK … Fig. 222. niatliine, especinlly of thevertical type, Fig. 221, thecutter being a form of endmill suited to the size andangle of the dovetail. X-slotsare cut in a similar manner,either directly from the solid,or by following a groove madewith a plain cutter. One of the most commonoperations…
