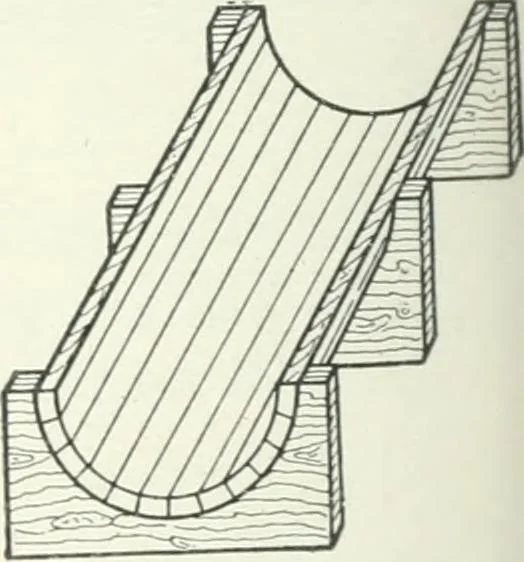

Fig. 208. Fisr. 2U7. and screwed into each, serving not only to strengthen the pattern,but also to hold the connecting dowel pins. When the two halvesof the pattern are clamped together (with staples) it serves also asa secure means of centering in the lathe. The staves forming the body of the…
