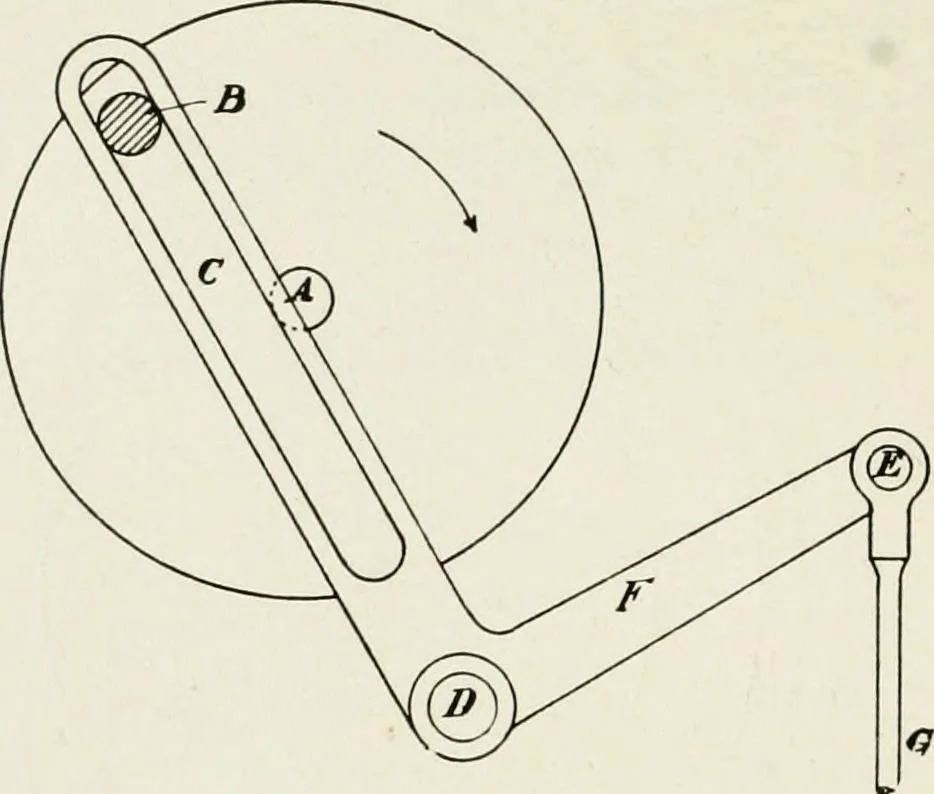

Fig. 179.Quick Return Mechanism 176. Assignment.— Length of lever, A (18-24) in. External diam. of circular slot (8-10) in. Distance from center of rotating shaft, F, to center of circularslot (4-10) in. Plot velocity-time diagram of crosshead at end of arm A, which movesalong a horizontal Una… … Fig. 180. Quick Return Mechanism 177. Assignment.— Radius of pin B from A (8-16) in. Distance from A to D (18-24) in. Distance of A above horizontal line through D in. If B revolves with uniform rotation about A, plot the velocity-timediagram of block at lower end of EG. KINEMATIC PROBLEMS 317…
