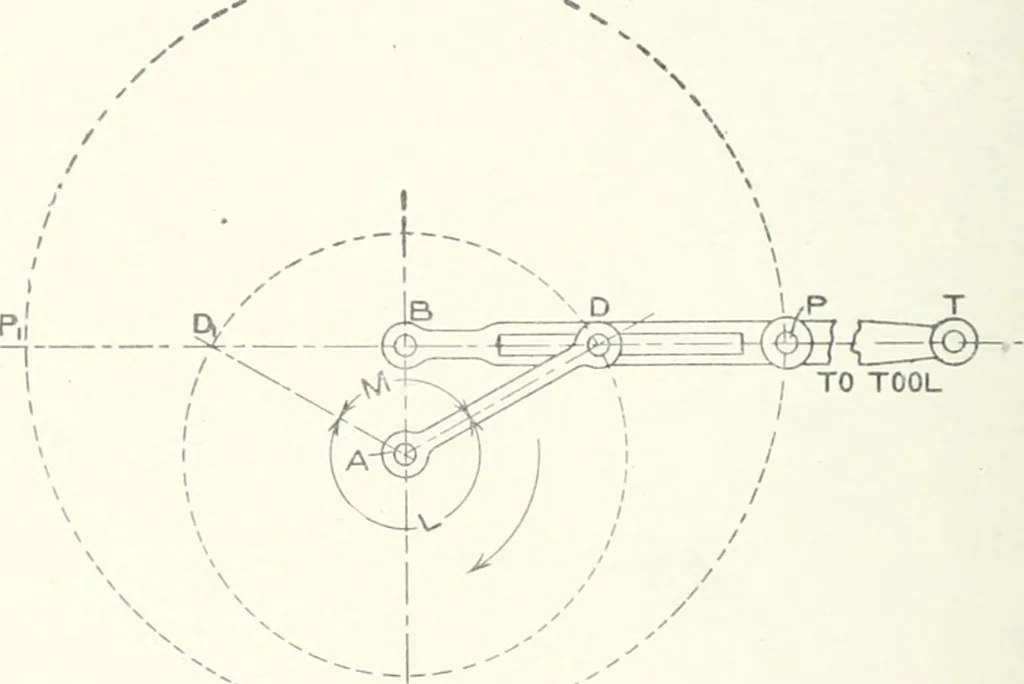

180^), AD has turned throughthe anMe L. In returning BP to its right-hand position again,AD has to turn through the angle M only. Now, since AD turnswith uniform speed and since angle M is less than angle L, Tmakes its stroke from left to right in less time than was roquir(;(lto move from right to… … Fig. 56. With A as a center and AD as a radius, draw a circle anddivide the circumference by the points D and D, so that angle Lmay bear the same ratio to angle M that the time of advance bearsto the time of return. Join D and D, and from A draw a lineperpendicular to DDj, meeting it at B, which…
