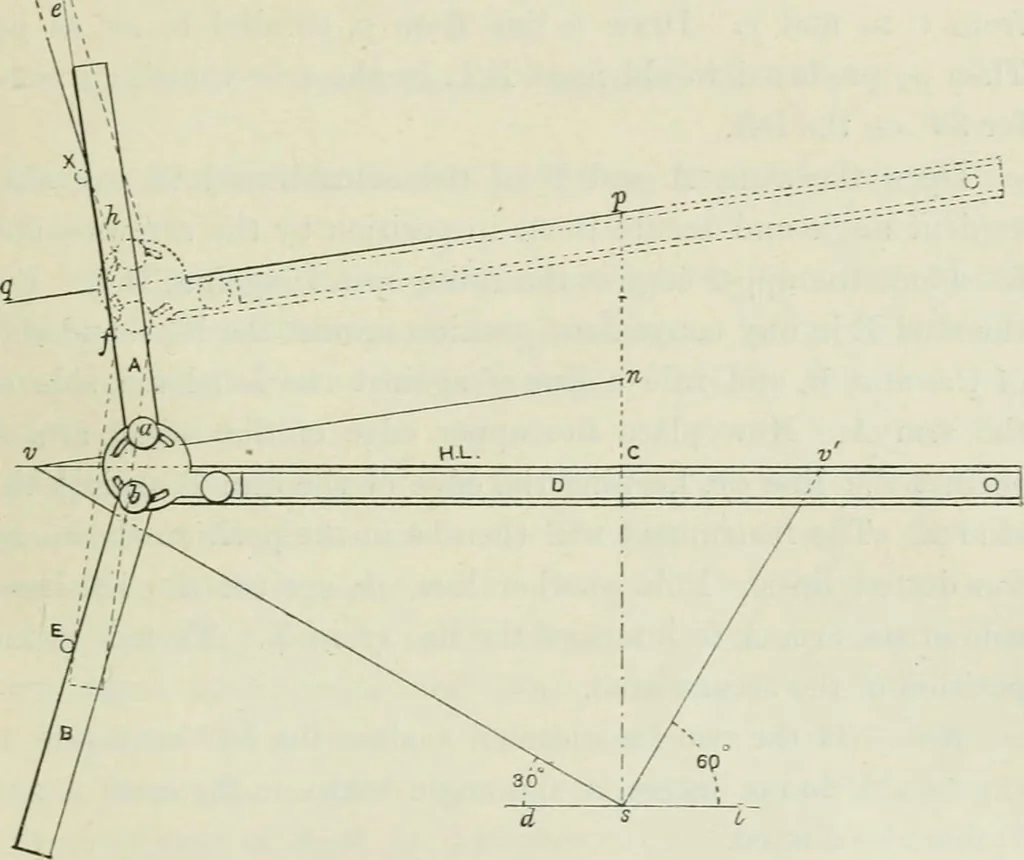

d by producing the receding lines inperspective to meet the H.L. [20]. The Ckntkolixead The centrolinead is an instrument used for drawing linesconverging towards inaccessible vanishing points, and is PERSPECTIVE FOR ARCHITECTS AND ENGINEERS 273 indispensable when perfective drawings to a large… … Fiff. 1S4. secured in the re(|uired position by the screws a and h workingin slots. These movable arms work against studs fixed in thedrawing board. How TO Set a Centrolixead.—Let H.L. (Fig. 184)represent the horizon line, and C the centre of vision. Thestation point to be 7^ feet from C, and the…
