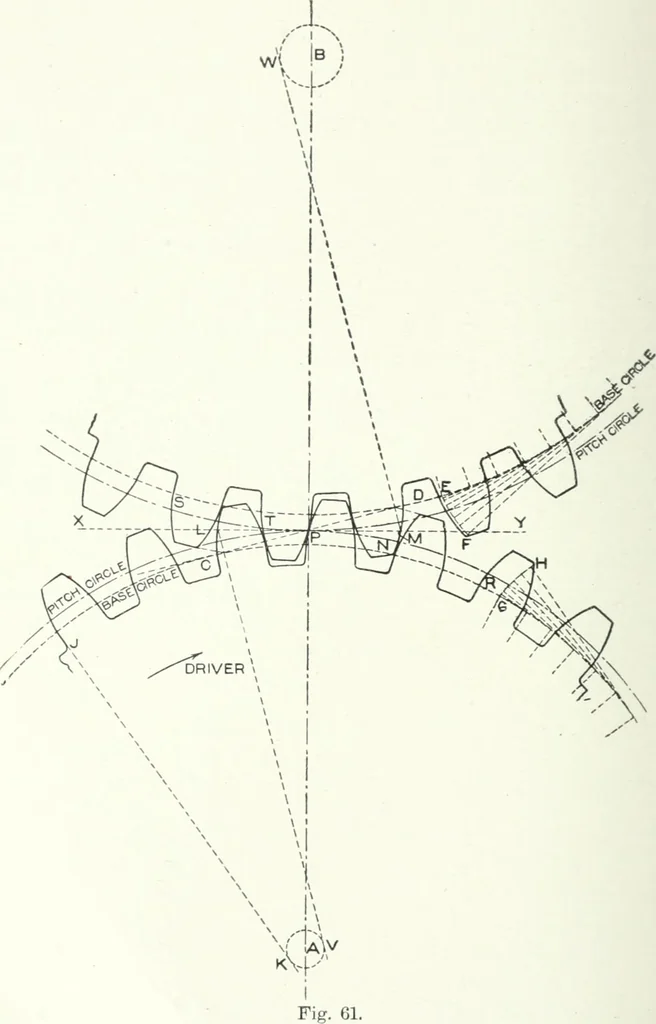

act changes. If from the point of contact,as J, a line is drawn to the pitch P, the tooth curves should havesuch form that this line is normal to both curves at J; that is, PJshould be ])erpendicular to a line drawn tangent to both curves atJ. This condition should hold, wherever the point of… … 364 MECHANISM. Tlieso are the involute and tlie epicycloidal curves. V\ir. 00shows a pair of gears witli epicycloidal teeth and Fig. f»l showsparts of two gears with involute teeth. The construction for get-ting the tooth outlines is shown in the figures, but as this properlycomes under the subject…
