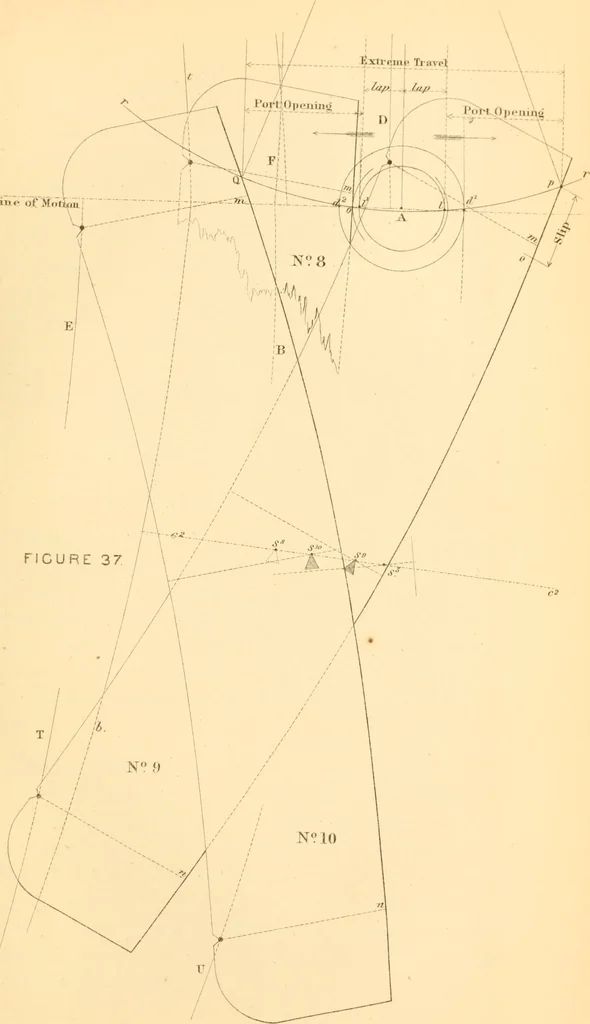

Liu.- ,,C M … MODIFICATIONS. 119 (Fig. 37) and are able to mark the extreme points Q, p, ofthe rocker arc which are separated by a horizontal distanceequal to the extreme travel. For position .No. 8 the fixed point m on the templateattains its maximum elevation above the link arc, and now,at the extreme throw,…
