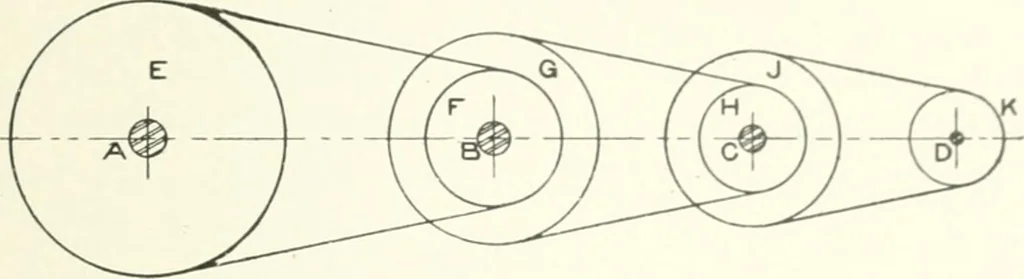

ead of the pulleydiameters. In Fig. 05, where all the belts are open belts, all the shafts 368 MECHANISM. 01 turn in the same direction; but where two shafts are connected hya pair of spur gears, the sliafts turn in o[)posite directions, so that,in Fig. 66, the direction in which shaft 1) will tnrn… … Fig. 05. Idle Gear. In Fig. 67, gear E drives gear F, and F drivesG, that is, F is both a driven and driving gear. Let E have 25teeth, F 30 teeth, and G 50 teeth, and let shaft C make 100 R. P.M. Then fiora the rule given above, ll.P.M.of A=100X|| X li-In this equation the number of teeth of F (30)…
