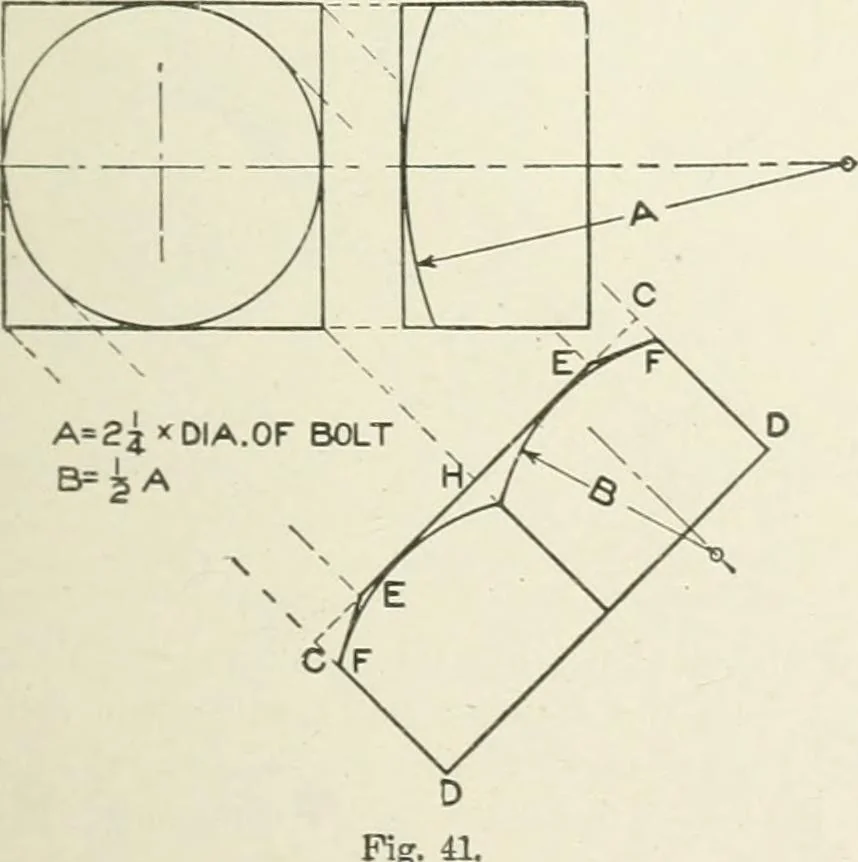

radius A equal to two &rA one-quarter times the diameter of thebolt,tie same as in yig. 4I. To draw the chamfer in the otherside view, draw the construction line parallel to and at a distancefrom CC euua to the aistance LL from NN and draw the arcs 88 •JG MKCIIAXKWL 1)1;A\V[X(; tangent to this…
