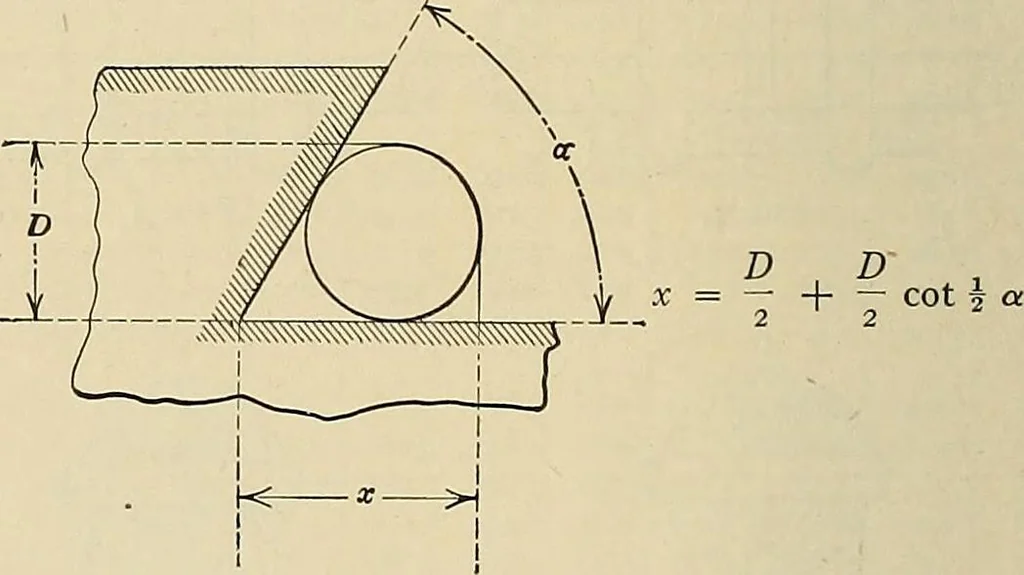

89 in., which, added to 1.64, gives 1.929 ins.as the value of y. The measurement of dovetails is greatly facilitated by the use ofTables 13 and 14 by W. A. Colt {Amer. Mach., June 4, 1914), whichalso include the formulas for use in cases not included in the tables. Standard T slots for machine… … Table 13.—The Measurement of Acute Angle Dovetails D 30° 35° 40° 45° 1 50° 55° 1 60° Values of x M6 .1478 -1303 .1171 .1066 .0982 .0912 ■ 0853 % -2957 .2607 .2342 .2133 -196s -1825 .1707 Me -4436 .3910 ■ 3513 .3200 .2947 -2738 .2561 U -5915 ■ S214 .4684 .4267 -3930 ■3651 -341S Mo -7393 .6518 .5855…
