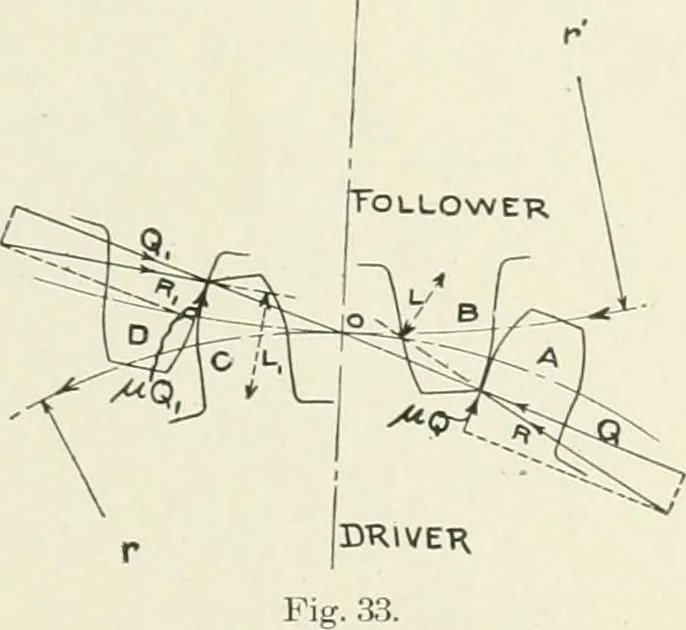

with every difference of pitch circle, or ofdetail and position of tooth. It is true, however, that in nearlyall cases in practice the bending stress is the controlling one froma theoretical standpoint. Moreover, the designer must considerthe form and streugth of the tooth when it is under the… … 118 MACHINE DESIGN Fig. 33, if the material in both gears were the same, tooth (,being the weaker at the root, would probably break before B; butif C were of steel, anil B of cast iron, B might break first. It will be noticed that II is nearly parallel to the top of thetooth; and it may easily…
