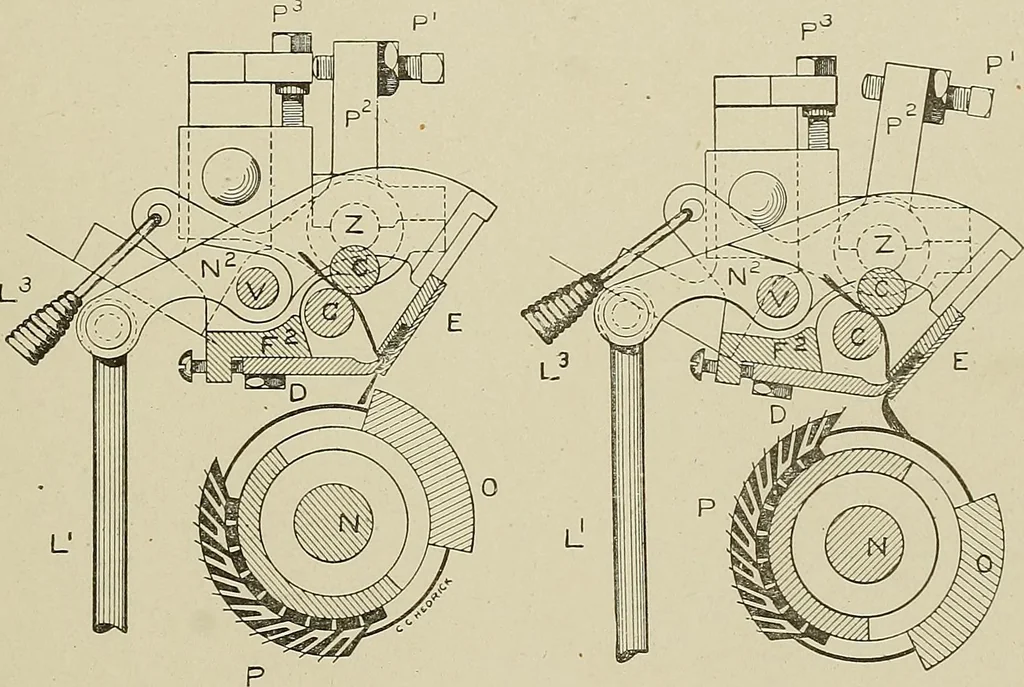

180 COTTON SPINNING. 141 rods, L^. The nipper cam mukes one revolution to one of thecylinder and, at each revolution, the opening and closing ofthe nipper and cushion plate takes place which corresponds to themovements of the cylinder, To follow these moveniQiits, Figs. 117, 118, 119 and 120liHve… … Fig. 118. Fig. 119. Sections showing Nipper and Cushion Plate. fluted segment and lia]f lap. Fig. 120 is a diagram of the nippercam showing certain points which correspond to the figures onthe timing dial. In Fig. 117, it is assumed that the needles have finishedcombing and the nipper and cushion…
