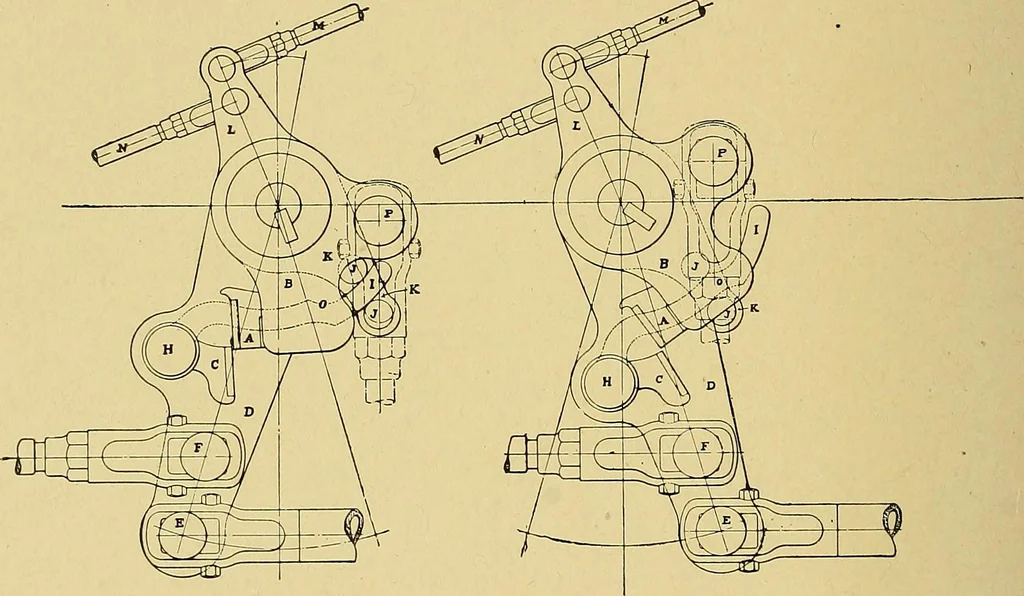

D.The pin E connects through the intermediate rockers and rods with thesteam eccentric on the engine shaft^, and the pin F connects to a similarinlet gear at the back end of the cylinder. As the rocker D moves to theright, the toe C engages the latch A, moving the inlet valve to open, andraising… … FIG. 150. FICx. 151. the rear, which in turn is carried between two rolls, J J. These rollsturn on pins in the cut-off lever K, which latter turns freely on the valve-stem journal. The arm L above forming part of the same casting as thecut-off lever K, is connected to the governor by the rod M.…
