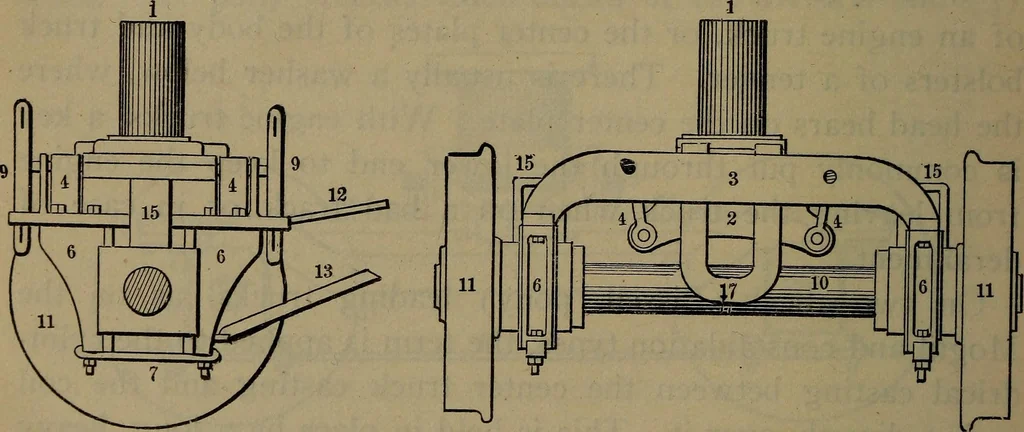

ruck or Bissell truck)made? A. There is a rectangular frame having below it jaws inwhich the axle boxes play, as in the four-wheeled truck. Boltedto the back of this is a V-shaped frame, the point of which hasa center pin passing into the main frame, and about which thetruck may swing. There are… … Fig. 271. Pony Truck. Fig. 272. Pony Truck. the front end of which bears in an eye in the lower end of thecenter pin, the center of which is fulcrumed in a horizontal pinattached to the main frame, and the rear borne by a cross-barsuspended from the front ends of the front driving-axlesprings. This…
