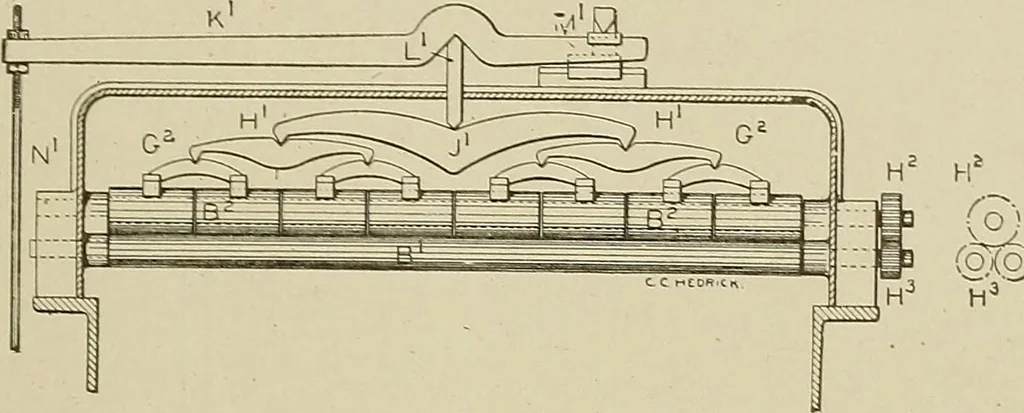

78 COTTOX SPINNING. 43 and D^, and the evener rolls, B^ and B^, are driven by the gears,Ci and El. It will be seen that by this arrangement any changein the speed of thee levating apron directly affects the speed of theevener and feed rolls. Fig. 32 is a section showing- the arrangement Of the… … Fig. 33. Elevation Showiug Eveiiei- Rolls aud Levers. The cotton passes along on the feed apron, F^, under the pressroll, Gi, and is drawn between tlie bottom evener rolls,.B^, andthe top evenei-roll, B^, and then bttween the feed rolls, A^. Thebottom evener rolls,which are about 2 inches in…
