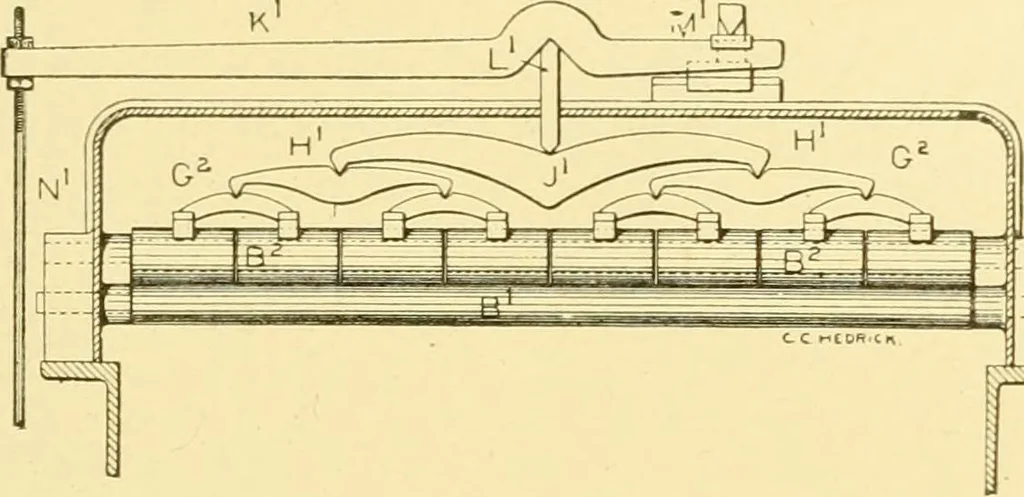

Fig. 32. Section Showing Evener Rollsand Feed Rolls. 78 COTTON SPINNING. 43 and Di, and the evener rolls, B^ and B^, are driven by the gears,Ci and El. It will be seen that by this arrangement any changein the speed of thee levating ai)ron directly affects the speed of theevener and feed rolls.… … H = (o) H-^ H^ Fig. 33. Elevation Showing Eveuer Rolls and Levers. The cotton passes along Cii the feed apron, F^, under the pressroll, G^, and is di-awn between the bottom evener rolls, B^, andthe top evener roll, B^, and then between the feed rolls, A^, Thebottom evener rolls, which are about 2…
