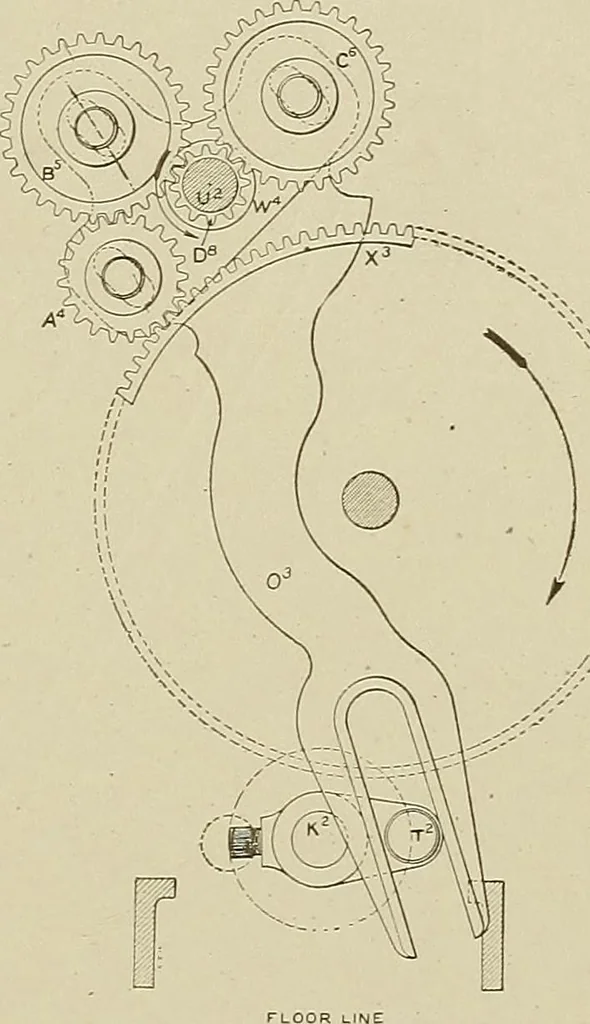

rack, P, is drivenfrom the reverse shaft, K^, bythe gears, E^, F^, 0% H, B^ J*and YK The bevel, E^, is keyedto the reverse shaft but is free toslide in and out of gear with F. When the machine is start-ed, the shipper rod, K^, is movedin the direction of the arrow andthe dog, L^, comes in contact… … 172. Elevation Showing ReverseCrank and Gearing. an annular groove in which is a fork, Z, pivoted to a stand at Z.The upright arm of the fork is connected with the stop motion latchby a rod, I. In starting the frame, the movement of the latch drawsthe gear, E% into contact with F*^ This completes…
