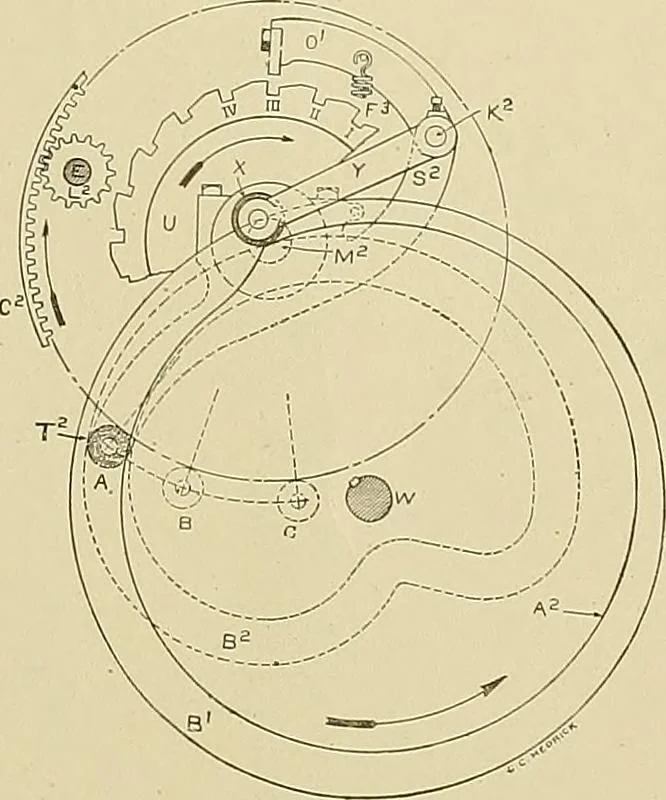

Fig. 129. ¥\g. 130. Diagrams of Detaching Eoll Cams. In Fig. 129, the cams are shown as having completed aboutthree-quarters of a revolution. The cam roll, T^, is on the smallestdiameter of the groove at C. The pawl, which is shown just en-tering notch III in Fig. 128, has engaged the whole depth…
