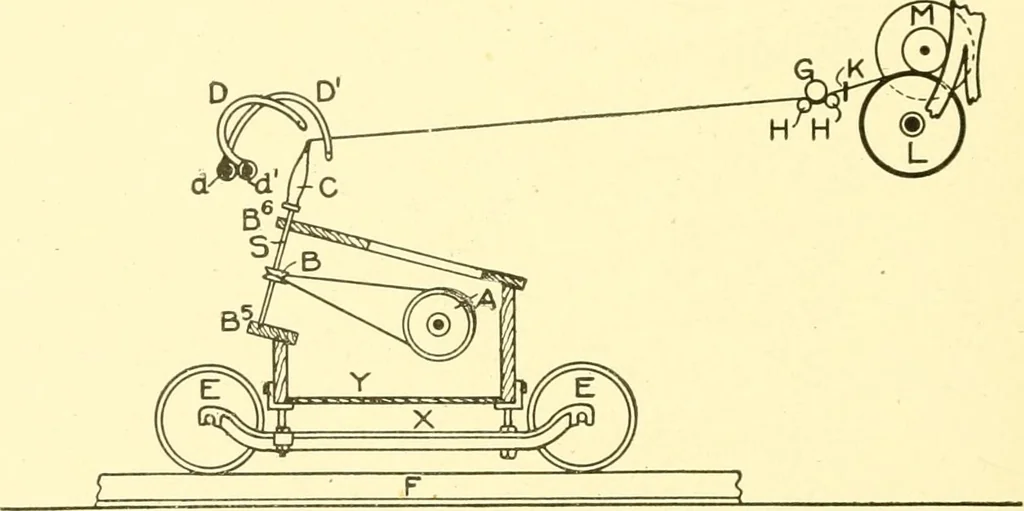

the carriage, their numberdepending upon the length of the machine. At the commencement of a draw the carriage is in, the top of thespindles being just below and within approximately one inch of thedeUvery rolls G and H. Simultaneously with the deUvery of rovingfrom the rolls, the carriage… … Fig. 154. Diagram Showing End View of Carriage, Delivery Rolls, etc. then the rolls stop, the carriage continuing till the end of the drawis reached; a distance of about seventy-two inches from the drawing-off rolls. During the latter part of the operation the roving is drawnand twisted, while…
