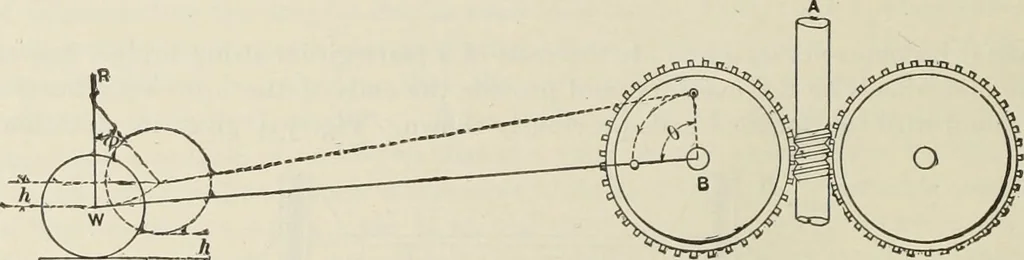

Fig. 395. In this form of end lift the bridge is first swung into line and latched ; then, by turningthe vertical shaft A, the wheels B revolve about their centres, and at the same time force thesuspended wheels W under the ends of the arms. Let Fig. 396 represent the motion of the parts of the end… … Fig. 396. R the maximum lift has been attained. Then the total work done in raising the end = ~ h. 2 As the time for opening or closing a swing bridge is usually limited, let t equal thenumb.er of seconds required to raise the ends; then the mean power required to raise the ends ^RXh 2t * See Plate…
